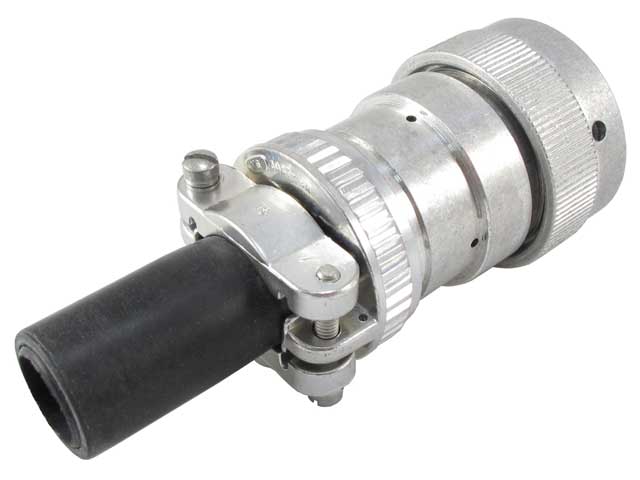

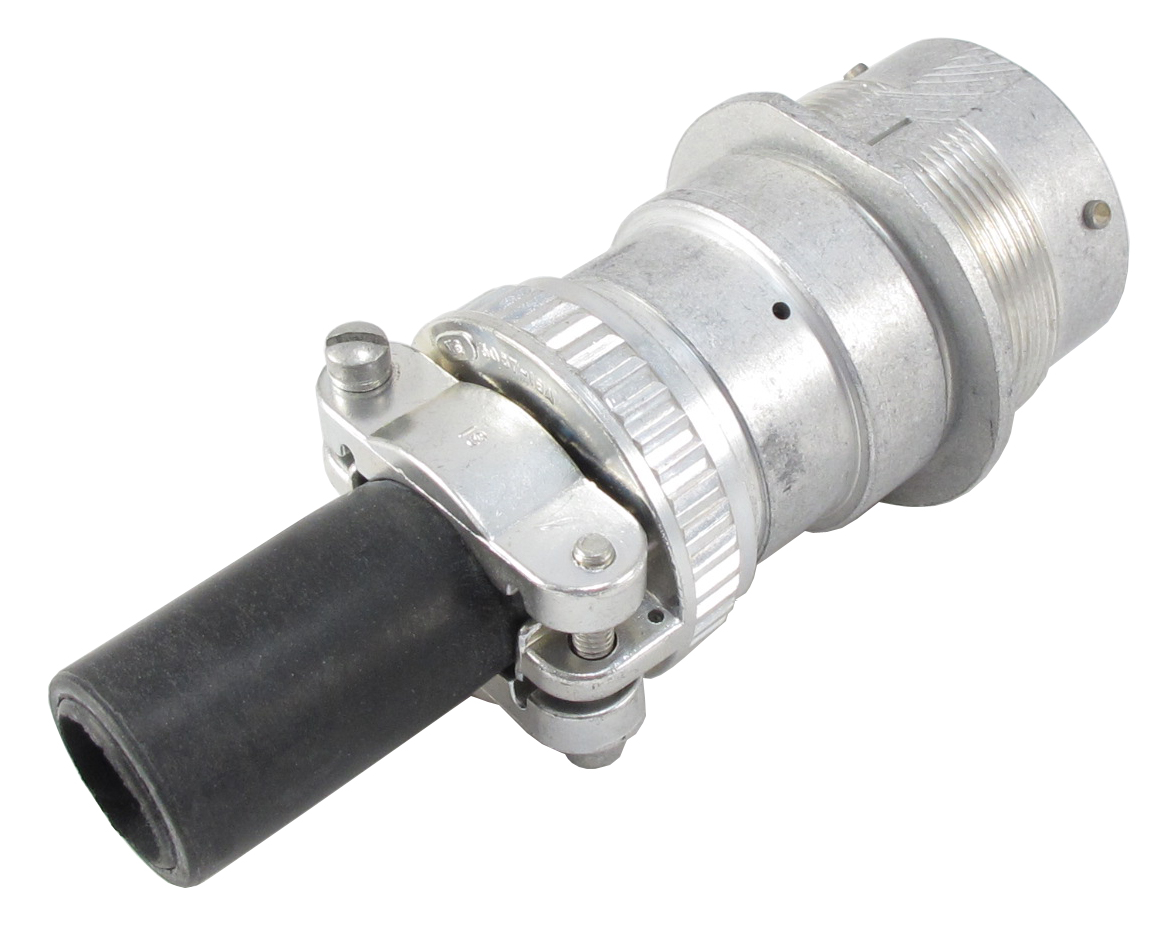

HD34-24-47SE-059
Generally high availability — ask for current lead time
No. of cavities
47
Color
Silver
Connector Style
Receptacle
Flange/In-line/PCB Mount
Flange, In-line
Holds Pin/Socket
Socket
Insulation
(#16).053-.103 [1.35-2.62], (#20).040-.083 [1.01-2.10]
Additional information
| No. of cavities | 47 |
| Color | Silver |
| Connector Style | Receptacle |
| Flange/In-line/PCB Mount | Flange, In-line |
| Holds Pin/Socket | Socket |
| Insulation | (#16).053-.103 [1.35-2.62], (#20).040-.083 [1.01-2.10] |
| keyed | No |
| Material | Aluminum |
| Modification | Cable Clamp |
| Seal Size | E seal |
| Series | HD30 Series |
| Shape | Circular |
| Shell Size | 24 shell |
| Special Features | Reverse |
| Wire Size | 14, 16, 28, 20, 22 |
Contacts

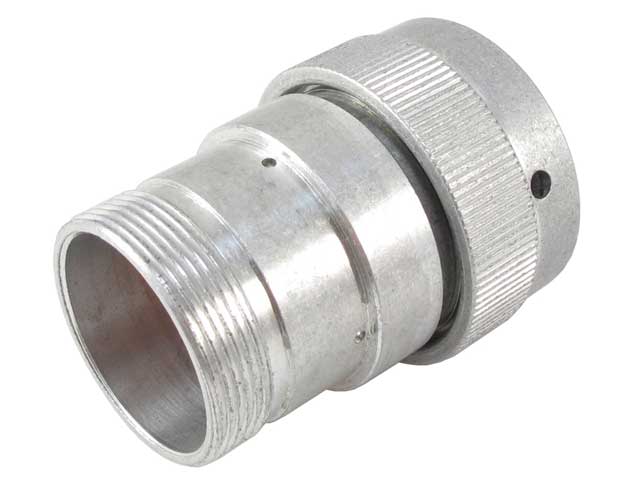

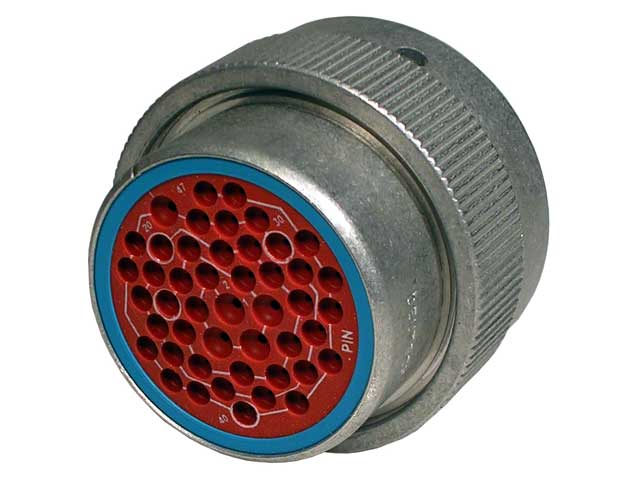

Mating connectors
Accessories
Drawings
Customer View Model (PDF)3D_CVM_CVM_HD34-24-47SE-059_A.pdfProduct Drawing (PDF)ENG_CD_HD34-24-XXPXSX-059_A1.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HD34-24-47SE-059_A.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HD34-24-47SE-059_A.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HD34-24-47SE-059_A.3d_stp.zip
