HD36-24-47PE
HDDeutsch

HD36-24-47PE

HD

Generally high availability — ask for current lead time
Cavities
47
Series
HD
Wire size
14, 16, 18, 20, 22
Color
Silver
Request a quoteCall usEmail

Technical specifications

No. of cavities47
ColorSilver
Connector StylePlug
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation(#16).053-.103 [1.35-2.62], (#20).040-.083 [1.01-2.10]
keyedNo
MaterialAluminum
Seal SizeE seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Special FeaturesReverse
Wire Size14, 16, 18, 20, 22

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-202-20141
0460-202-20141
0460-202-2031
0460-202-2031

Mating connectors

HD34-24-47SE
HD34-24-47SE

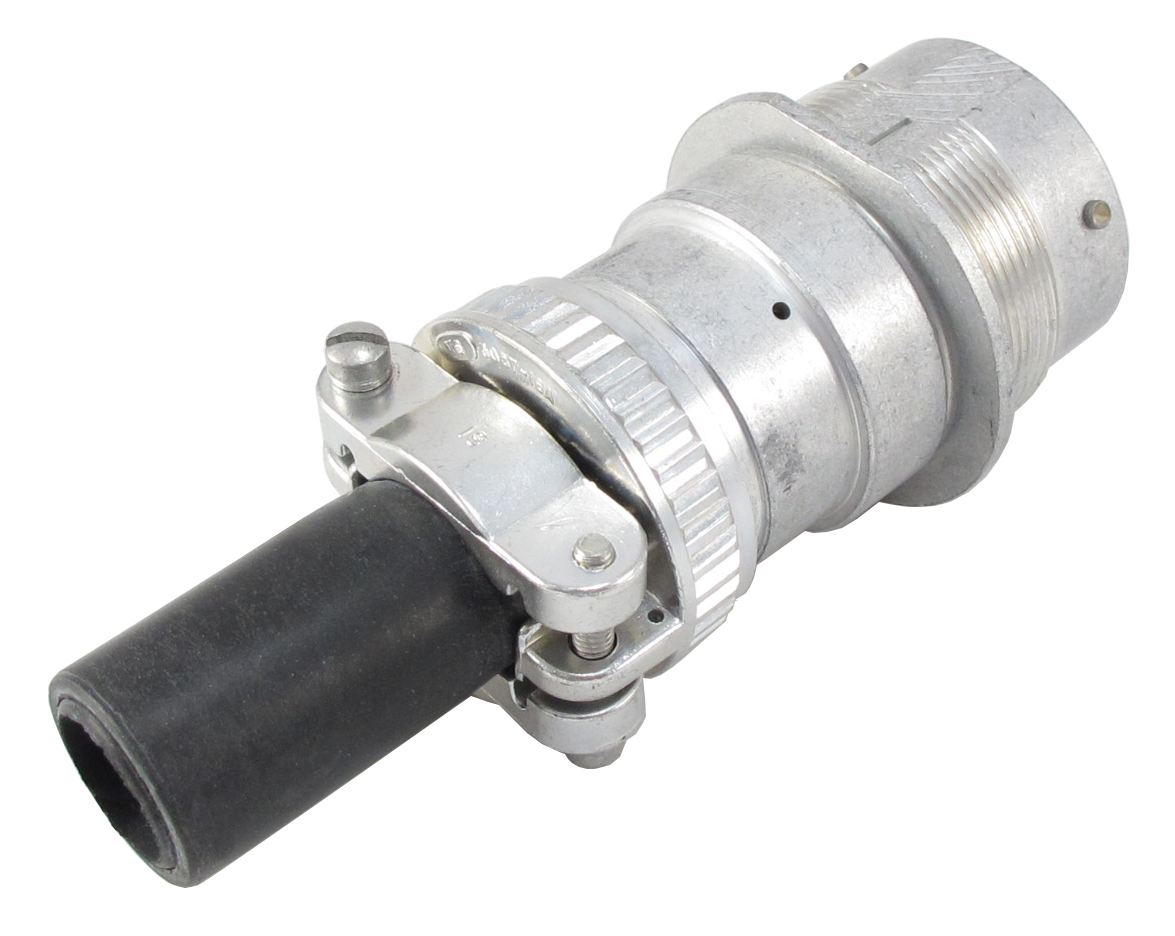

HD34-24-47SE-059
HD34-24-47SE-059

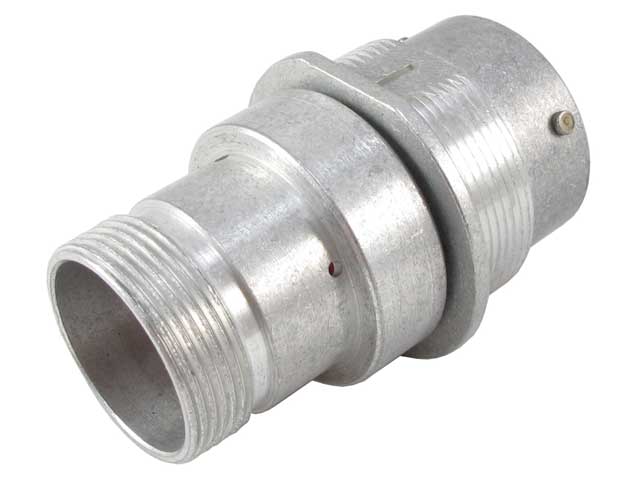

HD34-24-47SE-072
HD34-24-47SE-072

Accessories

HD30-24BT
HD30-24BT
HDC34-24
HDC34-24
WHDS-24-1
WHDS-24-1
WHDS-24-2
WHDS-24-2

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)
