HD34-24-33PN-059
DeutschCatalogue item

HD34-24-33PN-059

Generally high availability — ask for current lead time
No. of cavities
33
Color
Silver
Connector Style
Receptacle
Contact Size
20
Current Rating
7.5
Flange/In-line/PCB Mount
Flange, In-line
Request a quoteCall usEmail

Additional information

No. of cavities33
ColorSilver
Connector StyleReceptacle
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketPin
Insulation.040-.095 [1.02-2.41]
keyedNo
MaterialAluminum
ModificationCable Clamp
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Wire Size16, 18, 20, 22

Contacts

0460-202-20141
0460-202-20141
0460-202-2031
0460-202-2031
1060-20-0122
1060-20-0122
1060-20-0144
1060-20-0144

Mating connectors

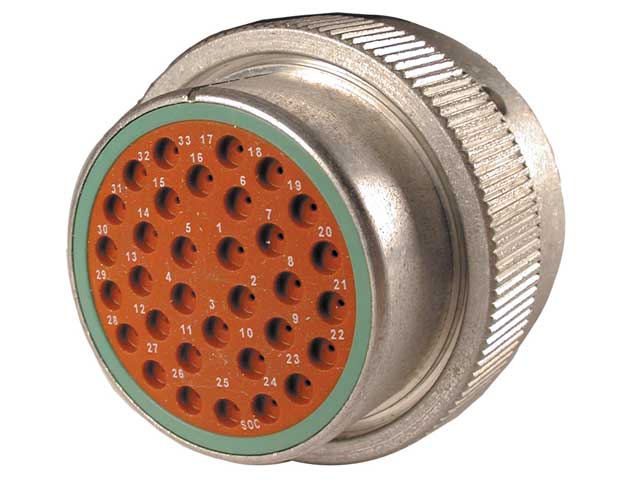

HD36-24-33SN
HD36-24-33SN
HD36-24-33SN-059
HD36-24-33SN-059

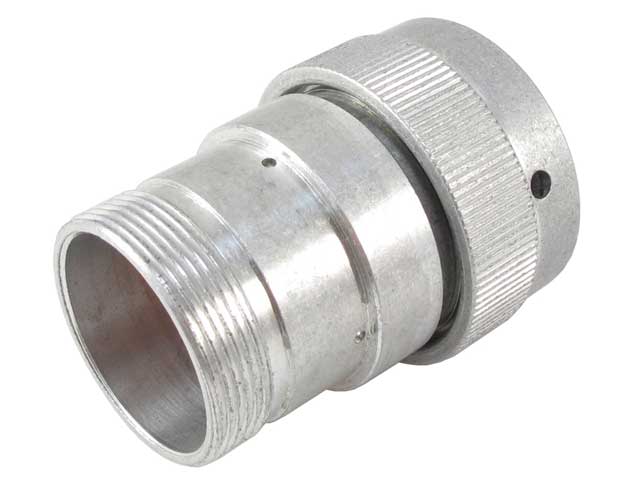

HD36-24-33SN-072
HD36-24-33SN-072

Accessories

112263-90
112263-90
112264
112264
16-04477
16-04477
HDC36-24
HDC36-24

Drawings

Customer View Model (PDF)3D_CVM_CVM_HD34-24-33PN-059_99_c-hd34-24-33pn-059-99-3d.pdfProduct Drawing (PDF)ENG_CD_HD34-24-XXPXSX-059_A.pdfProduct Drawing (TIF)ENG_CD_HD34-24-XXPXSX-059_A.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HD34-24-33PN-059_99_c-hd34-24-33pn-059-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HD34-24-33PN-059_99_c-hd34-24-33pn-059-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HD34-24-33PN-059_99_c-hd34-24-33pn-059-99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
