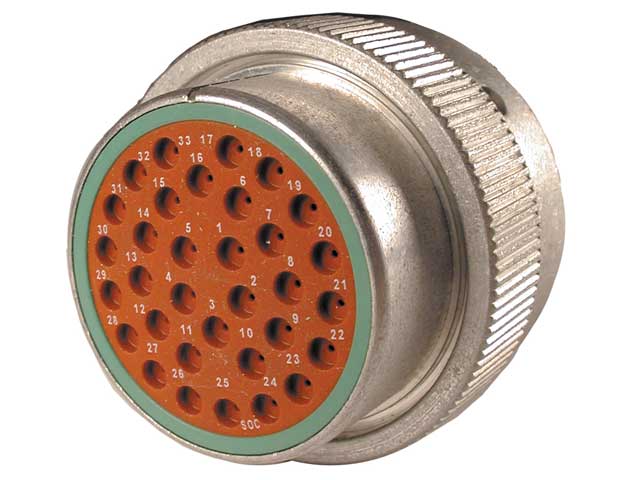

HD36-24-33SN
HDDeutsch

HD36-24-33SN

HD · Size 20 contacts

Generally high availability — ask for current lead time
Cavities
33
Contact size
20
Series
HD
Current rating
7.5
Wire size
16, 18, 20, 22
Color
Silver
Request a quoteCall usEmail

Technical specifications

No. of cavities33
ColorSilver
Connector StylePlug
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.040-.095 [1.02-2.41]
keyedNo
MaterialAluminum
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Wire Size16, 18, 20, 22

Compatible contacts

0462-201-20141
0462-201-20141
0462-201-2031
0462-201-2031
1062-20-0144
1062-20-0144
1062-20-0222
1062-20-0222

Mating connectors

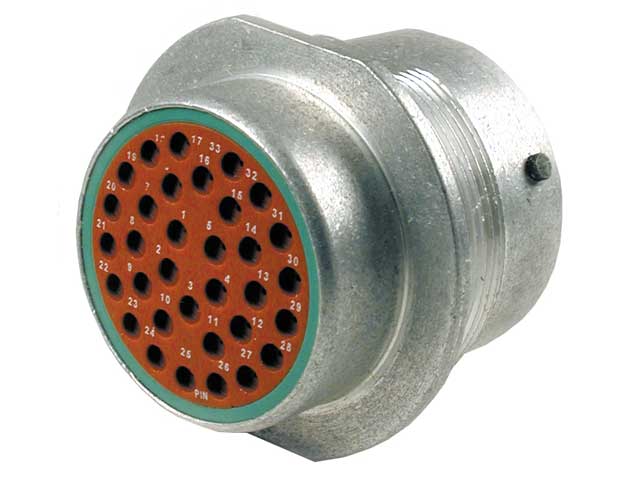

HD34-24-33PN
HD34-24-33PN

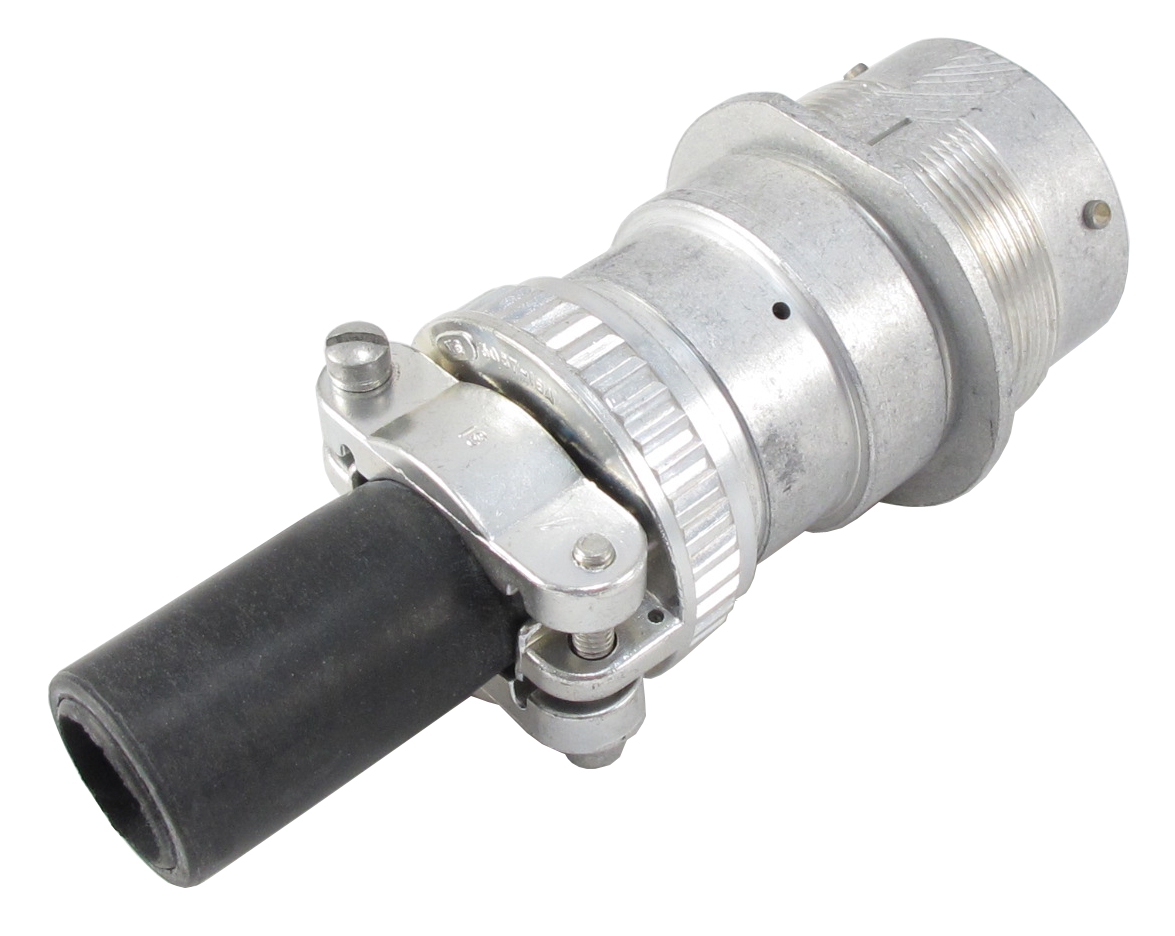

HD34-24-33PN-059
HD34-24-33PN-059

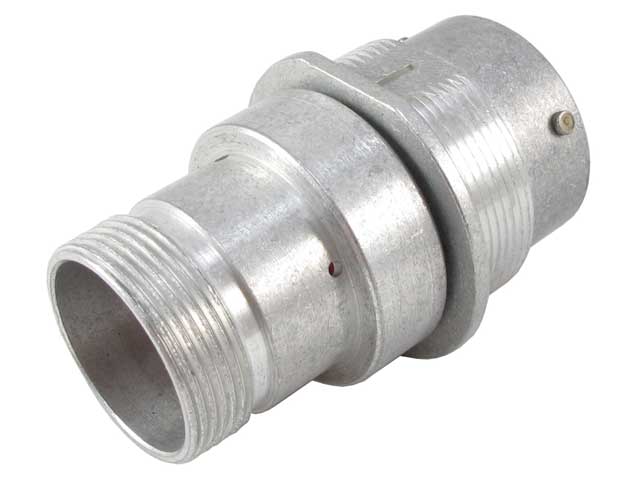

HD34-24-33PN-072
HD34-24-33PN-072

Accessories

HD30-24BT
HD30-24BT
HDC34-24
HDC34-24
WHDS-24-1
WHDS-24-1
WHDS-24-2
WHDS-24-2

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)
