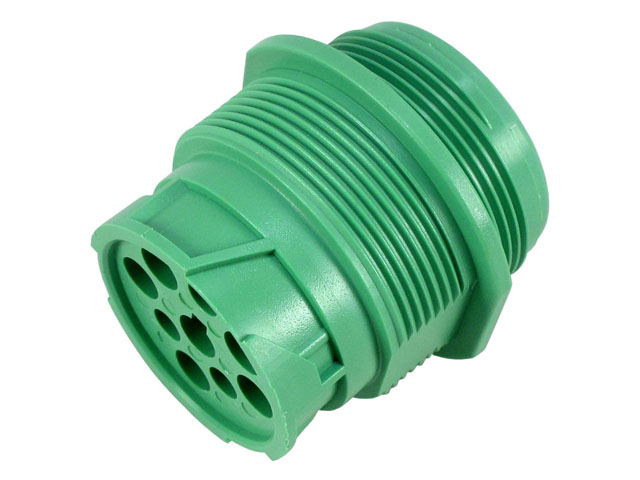

HD10-9-1939P-BP03

Generally high availability — ask for current lead time
No. of cavities
9
Color
Green
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
Flange
Request a quoteCall usEmail

Additional information

No. of cavities9
ColorGreen
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
Insulation.100-.150 [2.54-3.81]
keyedNo
MaterialPlastic
ModificationJ1939 Type II, Panel Nut Mount
SeriesHD10 Series
ShapeCircular
Special FeaturesThreaded rear, J1939
Wire Size14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

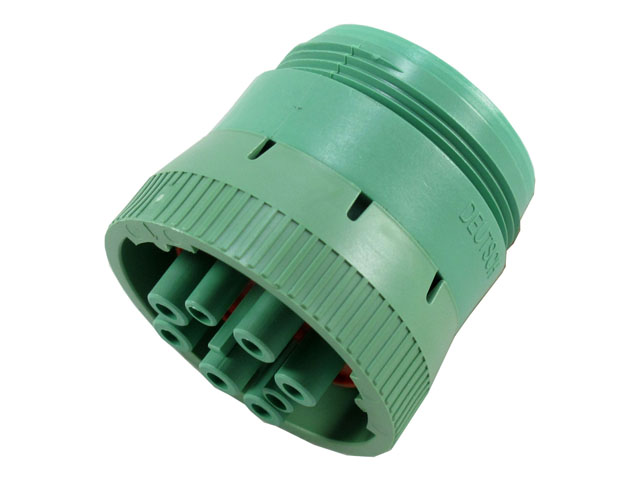

HD16-9-1939S-P080
HD16-9-1939S-P080

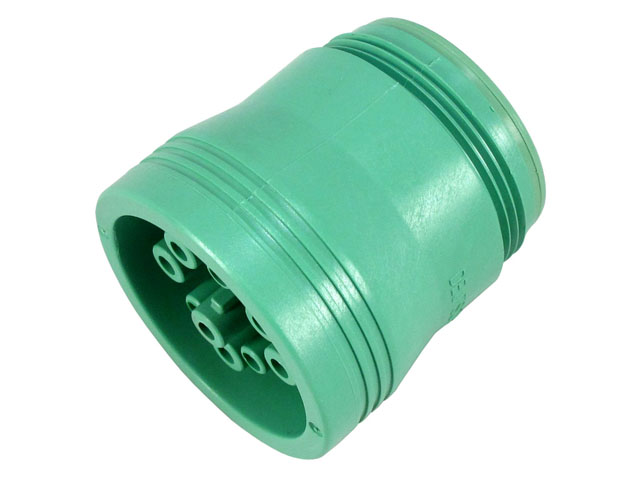

HD17-9-1939S-P080
HD17-9-1939S-P080

Accessories

2411-002-1805
2411-002-1805
2414-002-1886
2414-002-1886
HD30-18BT-BK
HD30-18BT-BK
HDC16-9-E004
HDC16-9-E004

Drawings

Customer View Model (PDF)3D_CVM_CVM_HD10-9-1939P-BP03_99.pdfProduct Drawing (PDF)ENG_CD_HD10-9-1939PX-BP03_A1_pdf_hd10-9-1939px-bp03_env_drw.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HD10-9-1939P-BP03_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HD10-9-1939P-BP03_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HD10-9-1939P-BP03_99.3d_stp.zip
