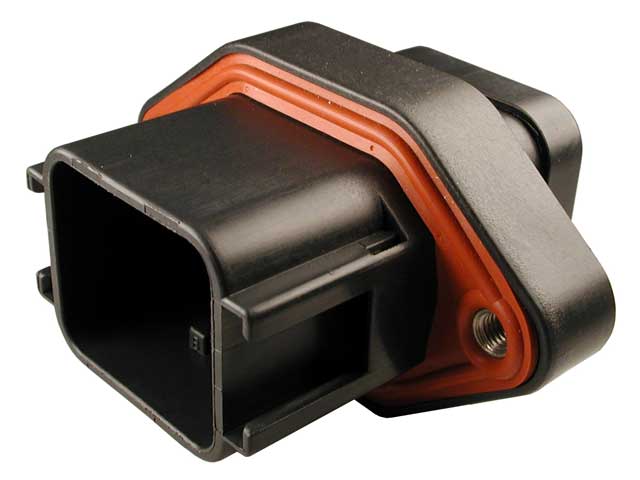

DTV02-18PB
DeutschCatalogue item

DTV02-18PB

Generally high availability — ask for current lead time
No. of cavities
18
Color
Black
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
Flange
Request a quoteCall usEmail

Additional information

No. of cavities18
ColorBlack
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
Insulation.088-.145 [2.23-3.68]
keyedYes, B key
MaterialPlastic
SeriesDTV Series
ShapeRectangular
Special FeaturesSealed flange, gasket, end cap
Wire Size14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

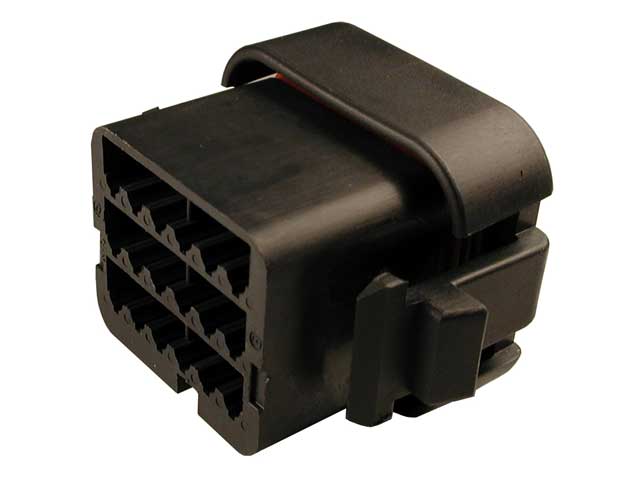

DTV06-18SB
DTV06-18SB

Required components

WV-18P
WV-18P

Accessories

DT-RT1
DT-RT1

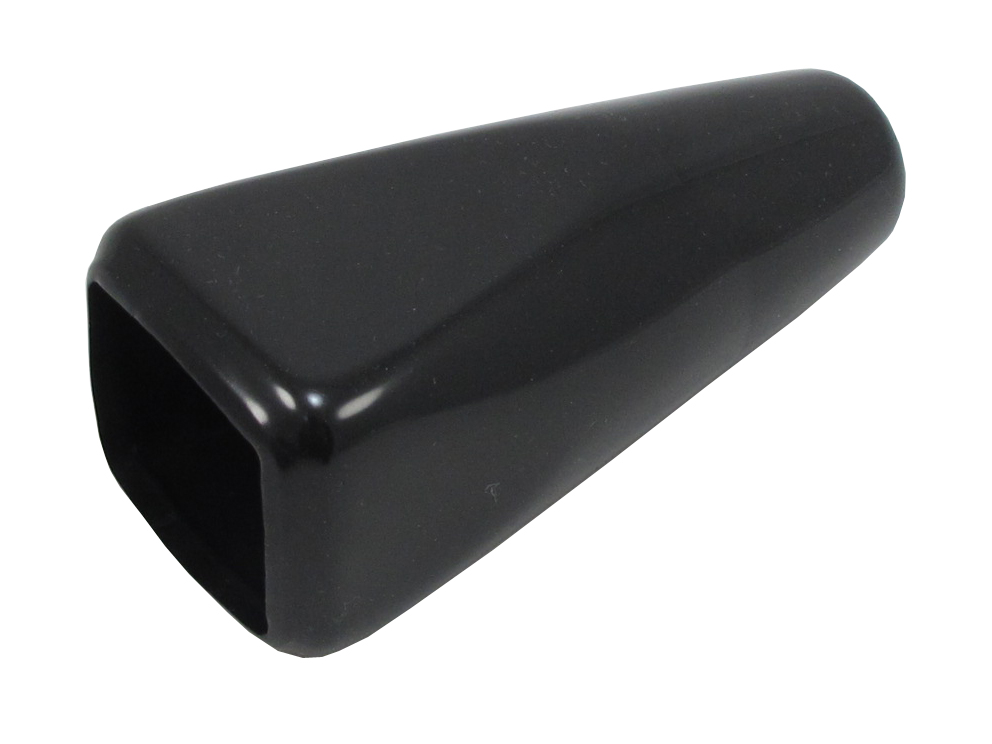

DTV18P-BT-BK
DTV18P-BT-BK

Drawings

Customer View Model (PDF)3D_CVM_CVM_DTV02-18PB_99.pdfProduct Drawing (PDF)ENG_CD_DTV02-18PX_-.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DTV02-18PB_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DTV02-18PB_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DTV02-18PB_99.3d_stp.zip
