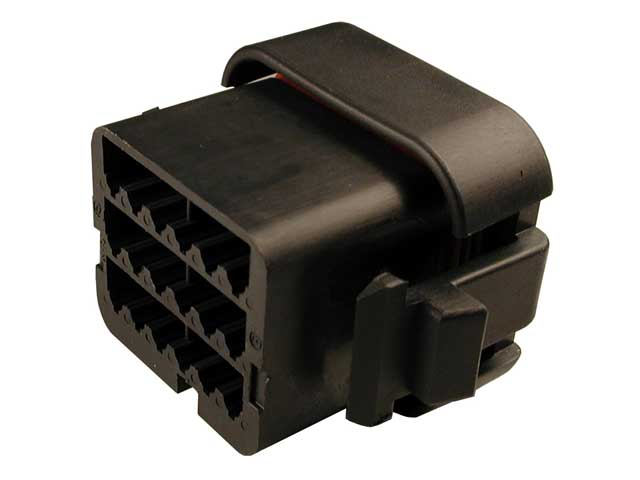

DTV06-18SB
DTV18-waySocketDeutsch

DTV06-18SB

DTV · 18-way · Socket · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
18
Contact size
16
Series
DTV
Type
Socket
Current rating
13
Wire size
14, 16, 18, 20
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities18
ColorBlack
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountFlange
Holds Pin/SocketSocket
Insulation.088-.145 [2.23-3.68]
keyedYes, B key
MaterialPlastic
SeriesDTV Series
ShapeRectangular
Special FeaturesEnd cap
Wire Size14, 16, 18, 20

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Required components

Must be ordered together with the housing.

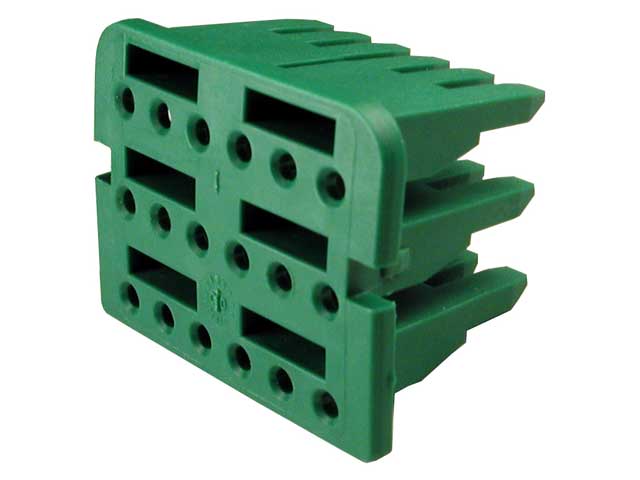

WV-18S
WV-18S
WV-18S
WV-18S

Accessories

DT-RT1
DT-RT1

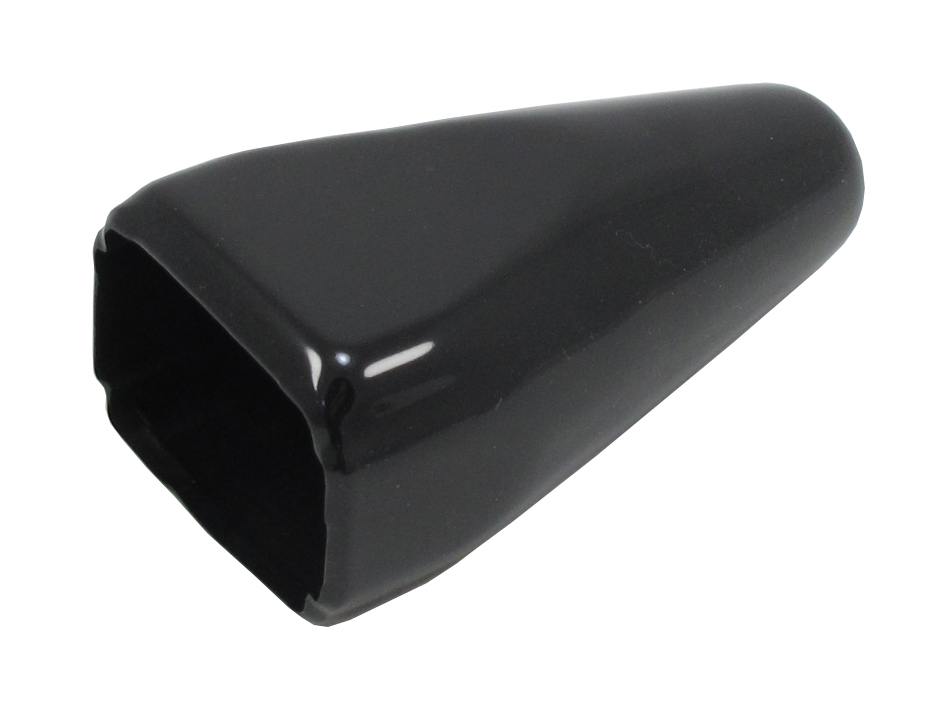

DTV18S-BT-BK
DTV18S-BT-BK

Drawings & CAD files

pdfProduct Drawing (PDF)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
