DTHD06-1-4S
DeutschCatalogue item

DTHD06-1-4S

Generally high availability — ask for current lead time
No. of cavities
1
Color
Black
Connector Style
Plug
Contact Size
4
Current Rating
100
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities1
ColorBlack
Connector StylePlug
Contact Size4
Current Rating100
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.280-.292 [7.11-7.41]
keyedNo
MaterialPlastic
SeriesDTHD Series
ShapeCircular
Wire Size6

Contacts

0462-203-04141
0462-203-04141

Mating connectors

DTHD04-1-4P
DTHD04-1-4P

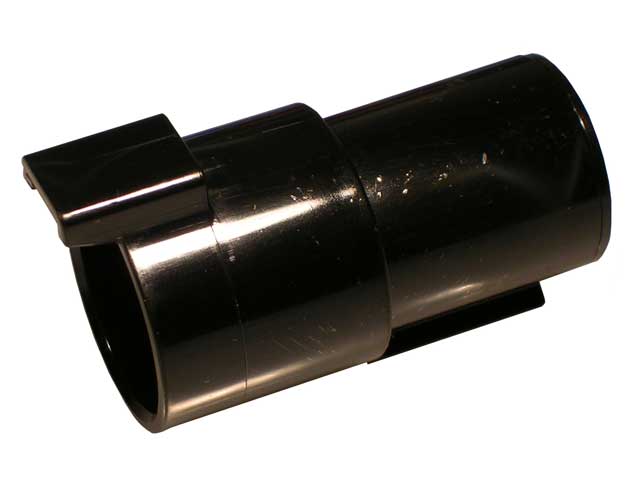

DTHD04-1-4P-E003
DTHD04-1-4P-E003

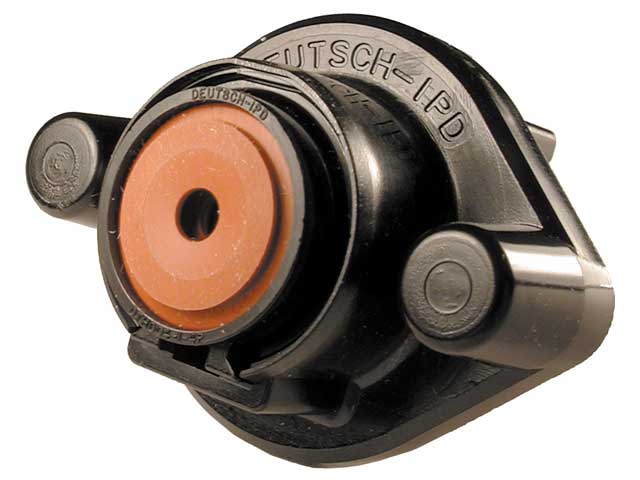

DTHD04-1-4P-L009
DTHD04-1-4P-L009

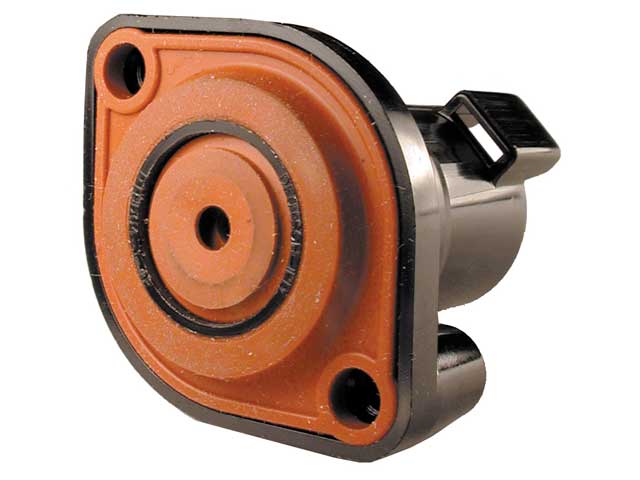

DTHD04-1-4P-L013
DTHD04-1-4P-L013

Drawings

Customer View Model (PDF)3D_CVM_CVM_DTHD06-1-4S_99.pdfProduct Drawing (PDF)ENG_CD_DTHD06-1-4S_A.pdfProduct Drawing (TIF)ENG_CD_DTHD06-1-4S_A.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DTHD06-1-4S_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DTHD06-1-4S_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DTHD06-1-4S_99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
