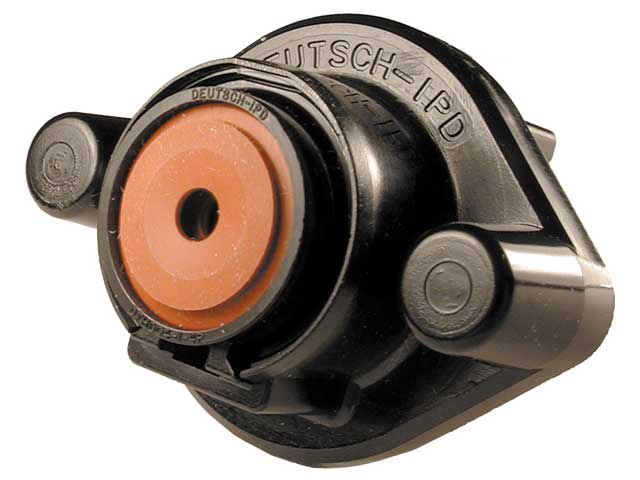

DTHD04-1-4P-L009
DTHDDeutsch

DTHD04-1-4P-L009

DTHD · Size 4 contacts

Generally high availability — ask for current lead time
Cavities
1
Contact size
4
Series
DTHD
Current rating
100
Wire size
6
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities1
ColorBlack
Connector StyleReceptacle
Contact Size4
Current Rating100
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
Insulation.280-.292 [7.11-7.41]
keyedNo
MaterialPlastic
ModificationSealed Flange
SeriesDTHD Series
ShapeCircular
Wire Size6

Compatible contacts

0460-204-0490
0460-204-0490

Mating connectors

DTHD06-1-4S
DTHD06-1-4S
DTHD06-1-4S-E003
DTHD06-1-4S-E003

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
