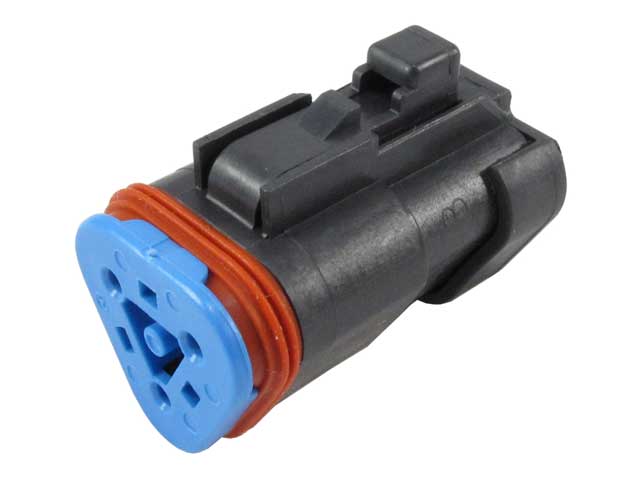

DT06-3S-PP01
DeutschCatalogue item

DT06-3S-PP01

Generally high availability — ask for current lead time
No. of cavities
3
Color
Black
Connector Style
Plug
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities3
ColorBlack
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
keyedYes, J1939
MaterialPlastic
ModificationEnhanced Seal Retention, Terminating Resistor, Gold Sockets, End Cap, J1939
SeriesDT Series
ShapeTriangular

Mating connectors

DT04-3P-E004
DT04-3P-E004
DT04-3P-E005
DT04-3P-E005
DT04-3P-EE01
DT04-3P-EE01
DT04-3P-LE12
DT04-3P-LE12

Required components

Included

Drawings

Customer View Model (PDF)3D_CVM_CVM_DT06-3S-PP01_99_c-dt06-3s-pp01-99-3d.pdfProduct Drawing (PDF)ENG_CD_DT06-3S-PP01_A.pdfProduct Drawing (TIF)ENG_CD_DT06-3S-PP01_A.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DT06-3S-PP01_99_c-dt06-3s-pp01-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DT06-3S-PP01_99_c-dt06-3s-pp01-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DT06-3S-PP01_99_c-dt06-3s-pp01-99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
