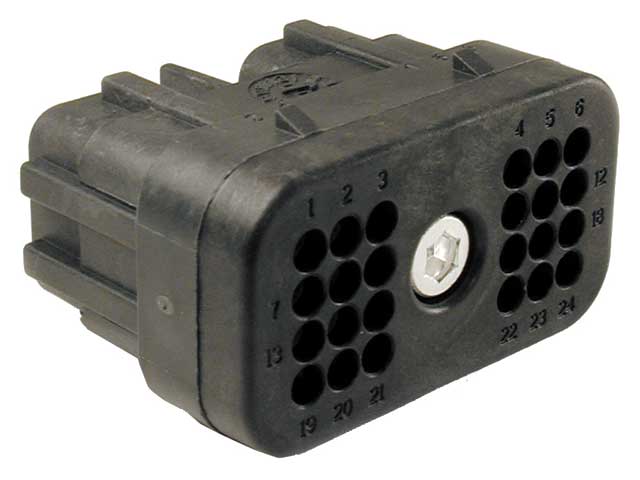

DRC26-24SA
DeutschCatalogue item

DRC26-24SA

Generally high availability — ask for current lead time
No. of cavities
24
Color
Black
Connector Style
Plug
Contact Size
20
Current Rating
7.5
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities24
ColorBlack
Connector StylePlug
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.040-.095 [1.02-2.41]
keyedYes, A key
MaterialPlastic
SeriesDRC Series
ShapeRectangular
Wire Size14, 16, 18, 20

Contacts

0462-201-20141
0462-201-20141
0462-201-2031
0462-201-2031
1062-20-0122
1062-20-0122
1062-20-0144
1062-20-0144

Mating connectors

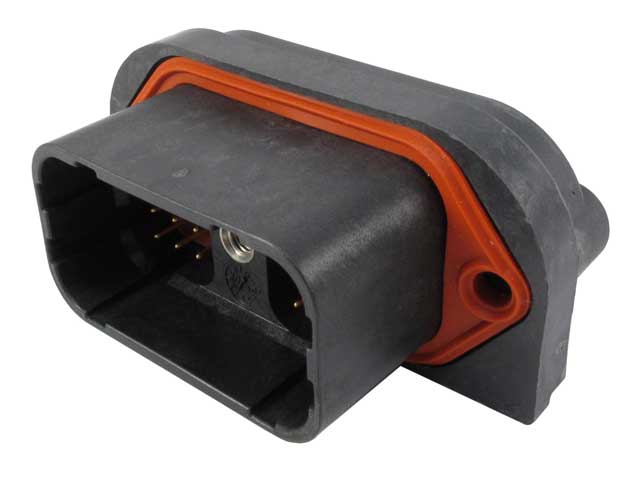

DRC23-24PA
DRC23-24PA

Accessories

0411-240-2005
0411-240-2005

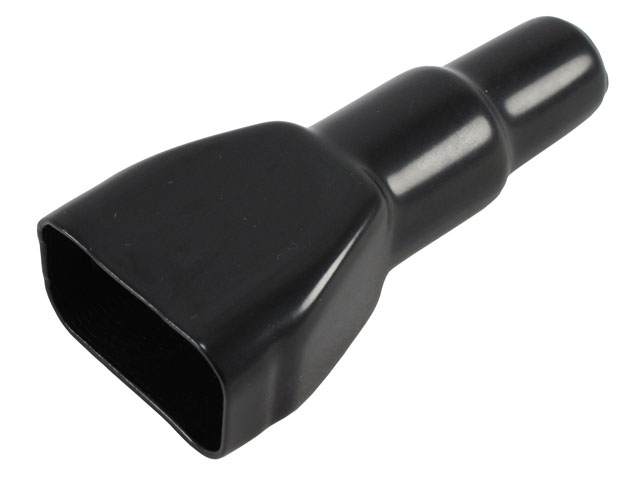

DRC26-24BT
DRC26-24BT

Drawings

Customer View Model (PDF)3D_CVM_CVM_DRC26-24SA_99.pdfProduct Drawing (PDF)ENG_CD_DRC26-24SX_C.pdfProduct Drawing (TIF)ENG_CD_DRC26-24SX_C.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DRC26-24SA_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DRC26-24SA_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DRC26-24SA_99.3d_stp.zip
