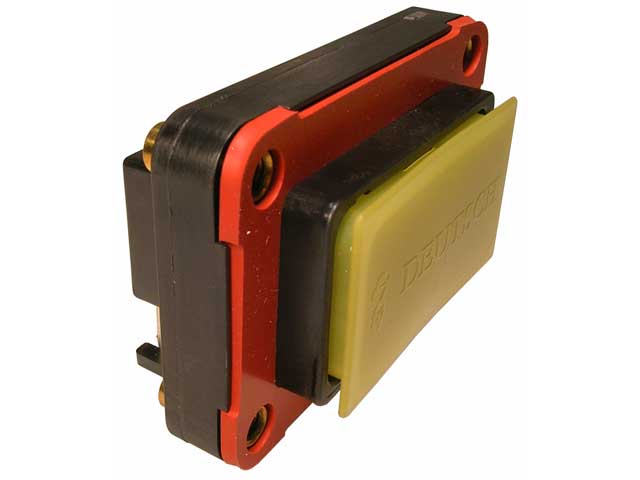

DRC13-24PA-G002
Generally high availability — ask for current lead time
No. of cavities
24
Color
Black
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
PCB Mount
Additional information
| No. of cavities | 24 |
| Color | Black |
| Connector Style | Receptacle |
| Contact Size | 16 |
| Current Rating | 13 |
| Flange/In-line/PCB Mount | PCB Mount |
| Holds Pin/Socket | Pin |
| keyed | Yes, A key |
| Material | Plastic |
| Modification | Outside Rows Gold, Inside Rows Tin |
| Series | DRC Series |
| Shape | Rectangular |
| Special Features | 90 degrees molded pins |
| Wire Size | 16 |
