DRC16-24SA

Outlet stock, €12.60 per unit

35 in stock at our Keila warehouse, price for 1 to 10 pieces, while quantities last. Browse the Components Outlet

1
DRC24-waySocketDeutsch

Deutsch DRC16-24SA, DRC Series, 24-Way Socket, connector, for wire processing

DRC Series · 24-way · Socket · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
24
Contact size
16
Series
DRC Series
Type
Socket
Current rating
13
Wire size
14, 16, 18, 20
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities24
ColorBlack
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.100-.134 [2.54-3.40]
keyedYes, A key
MaterialPlastic
SeriesDRC Series
ShapeRectangular
Wire Size14, 16, 18, 20

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Mating connectors

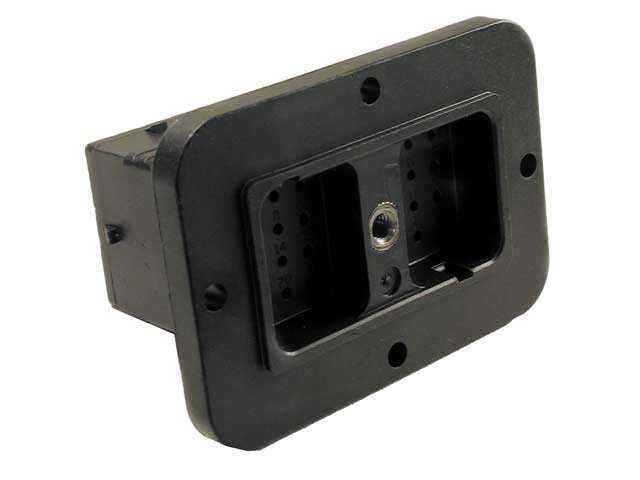

DRC12-24PA
DRC12-24PA

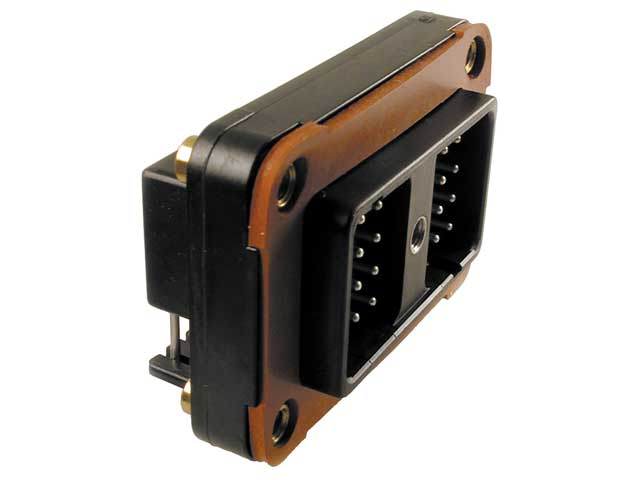

DRC13-24PA
DRC13-24PA

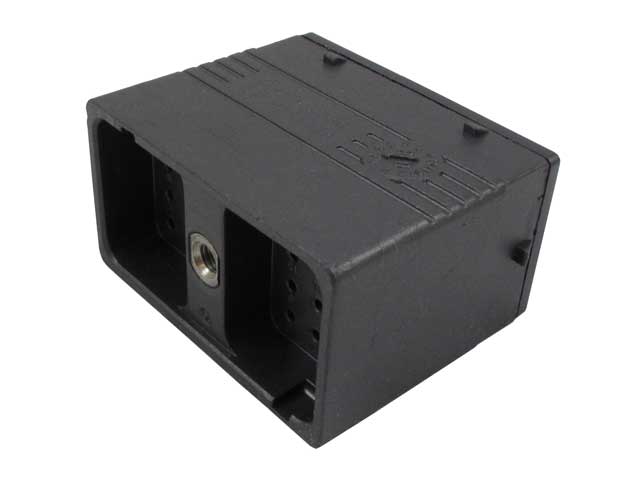

DRC14-24PA
DRC14-24PA

Accessories

0411-310-1605
0411-310-1605
DRC24-BT
DRC24-BT

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
