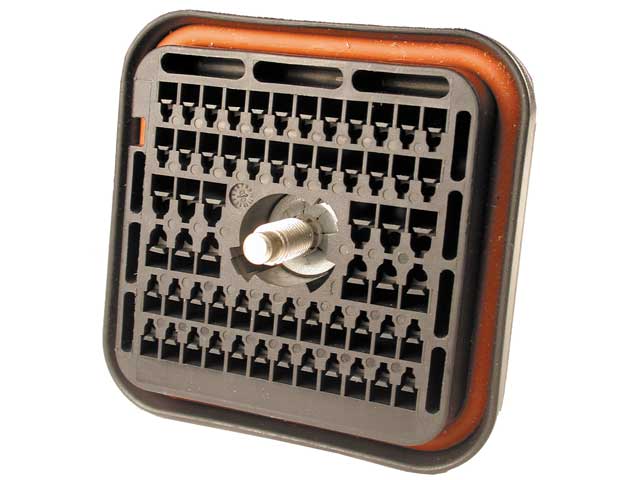

DRB16-60SAE-L018
DeutschCatalogue item

DRB16-60SAE-L018

Generally high availability — ask for current lead time
No. of cavities
60
Color
Black
Connector Style
Plug
Flange/In-line/PCB Mount
Flange
Holds Pin/Socket
Socket
Insulation
(#16).053-.120 [1.35-3.05], (#20).040-.095 [1.02-2.41]
Request a quoteCall usEmail

Additional information

No. of cavities60
ColorBlack
Connector StylePlug
Flange/In-line/PCB MountFlange
Holds Pin/SocketSocket
Insulation(#16).053-.120 [1.35-3.05], (#20).040-.095 [1.02-2.41]
keyedYes, A key
MaterialPlastic
ModificationWire Router
Seal SizeE seal
SeriesDRB Series
ShapeSquare
Wire Size14, 16, 18, 20, 22

Contacts

0462-201-16141
0462-201-16141
0462-201-20141
0462-201-20141
1062-16-0122
1062-16-0122
1062-20-0122
1062-20-0122

Mating connectors

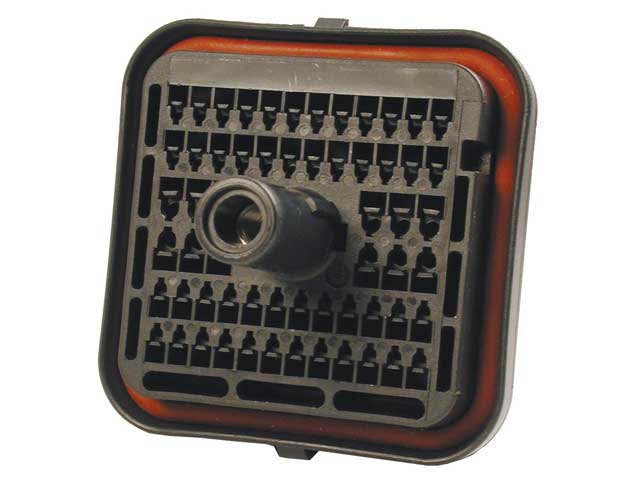

DRB12-60PAE-L018
DRB12-60PAE-L018

Required components

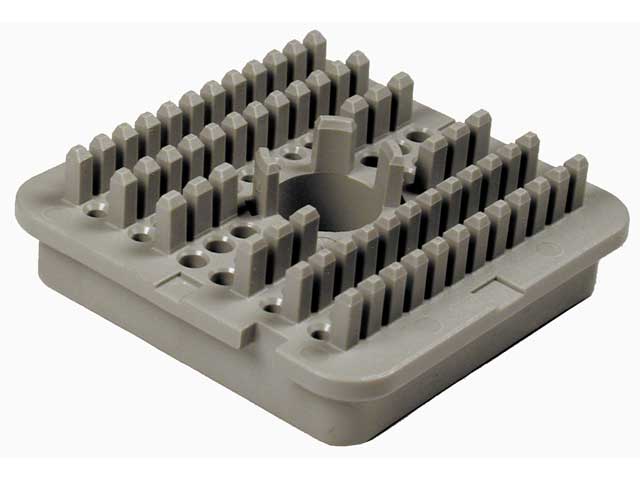

WB-60SA
WB-60SA

Accessories

DRB48-60-BT
DRB48-60-BT
DRBF-2A
DRBF-2A

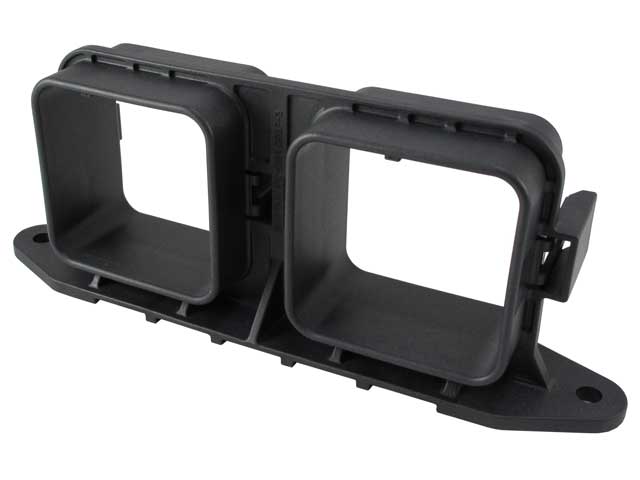

DRBF-3AB
DRBF-3AB
DT-RT1
DT-RT1

Drawings

Customer View Model (PDF)3D_CVM_CVM_DRB16-60SAE-L018_99.pdfProduct Drawing (PDF)ENG_CD_DRB16-60SXE-L018_-.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DRB16-60SAE-L018_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DRB16-60SAE-L018_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DRB16-60SAE-L018_99.3d_stp.zip
