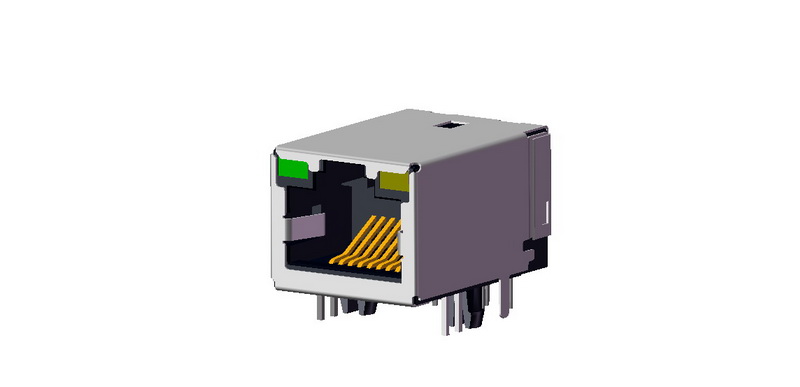

CJCL SERIES 10/100 Base-Transformer RJ45 Connector
Catalogue item

CJCL SERIES 10/100 Base-Transformer RJ45 Connector

• Rated Current and Voltage : 1.5A 150V AC (r.m.s) • Dielectric Withstanding Voltage : 1000V AC for one minute • Contact Resistance : ＜20mΩ(Initial) ,＜30mΩ(Final) • Insulation Resistance : ＞1000MΩ • Operating Temperature : -40℃~+80℃ • RoHS Compliant

Generally high availability — ask for current lead time
Circuits
08 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_320.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CJCL02S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Location
CCT-TVL0168
Request a quoteCall usEmail

Additional information

Circuits08 CIRCUTS
Product DrawingsDownload CJCL02S
GWIT0
Halogen Free0
Lead Free0
LocationCCT-TVL0168
Plating CodeA = Selective 1.2μ” Gold Flash over 50μ” Nickel Download GENERAL PLATING-2 PDF
RoHS0
SpecificationDownload SPCJ066
Test ReportDownload CJCL88AB1D2 TEST Download TVL0168JCL1
Tin-lead0
TUV0
UL0

Description

N/A
