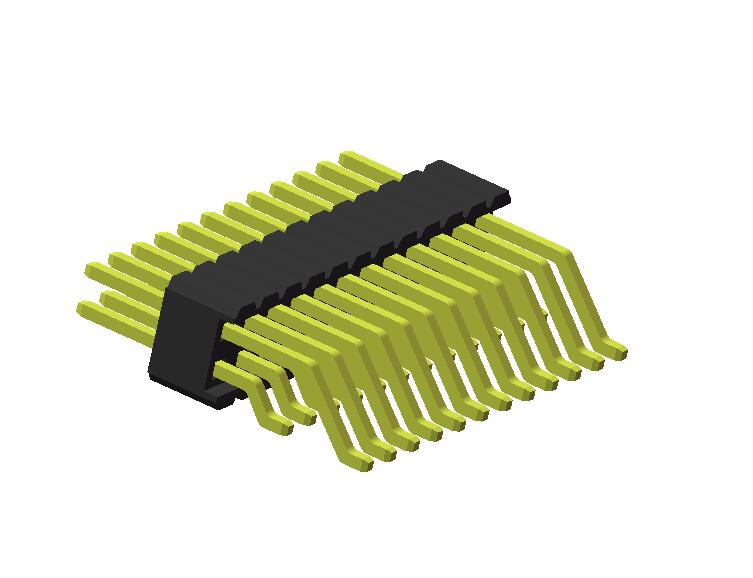

CH60 Series Right Angle Dual Row Board Mount Pin Header
Catalogue item

CH60 Series Right Angle Dual Row Board Mount Pin Header

• Rated Current and Voltage : 1A 250V AC(r.m.s) • Dielectric Withstanding Voltage : 500V AC for one minute • Contact Resistance : ＜20mΩ • Insulation Resistance : ＞5000MΩ • Operating Temperature : -40℃ ~ 105℃ • RoHS Compliant

Generally high availability — ask for current lead time
Circuits
04~100 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_189.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CH6001S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Location
CCT-TVL0069
Request a quoteCall usEmail

Additional information

Circuits04~100 CIRCUTS
Product DrawingsDownload CH6001S
GWIT0
Halogen Free0
Lead Free0
LocationCCT-TVL0069
Plating Code2= Gold Flash Plated over 50μ” Nickel Download General Plating PDF
RoHS0
SpecificationDownload SPCH060
Test ReportDownload Test Report Download Packing TVL0069H601
Tin-lead0
TUV0
UL0

Description

N/A
