Catalogue item

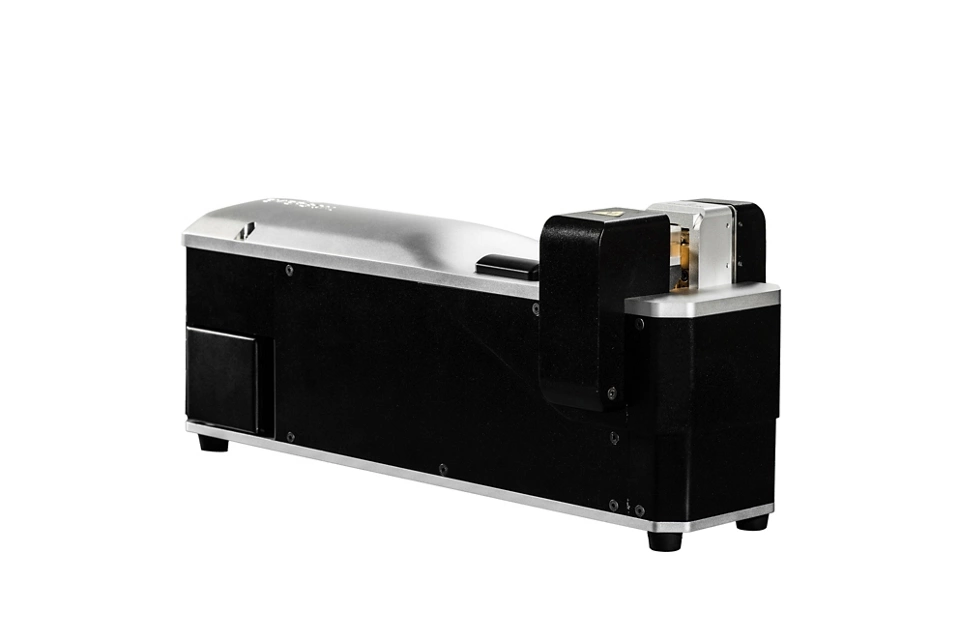

Branson GMX-W1 Wire Splicer
The Branson GMX-W1 joins wires reliably and quickly while providing maximum maneuverability. A user-friendly HMI and portable, ergonomic design make it easy to use as either an in-line or tabletop system. This product is designed for copper wire harness, although other materials may be possible upon testing and qualification.
Features
- User-friendly HMI with 22" capacitive touch screen
- Portable, ergonomic design for in-line or tabletop use
- Integrated Cutter Module
- USB and Ethernet data interfaces
- Designed for copper wire harness joining
Specifications
- Frequency
- 20 kHz
- Output power
- 4000 W
- Actuation
- Pneumatic
- Cooling system
- Air
- Pneumatics type
- 5.5 bar (80 psi) clean, dry air
- Special feature
- Cutter Module
- User interface
- 22" capacitive touch screen
- Data interface
- USB, Ethernet
- Input power
- 200~230V single phase, 25A max
- Overall dimensions
- 6.7" (W) x 7.9" (H) x 19.9" (L)
