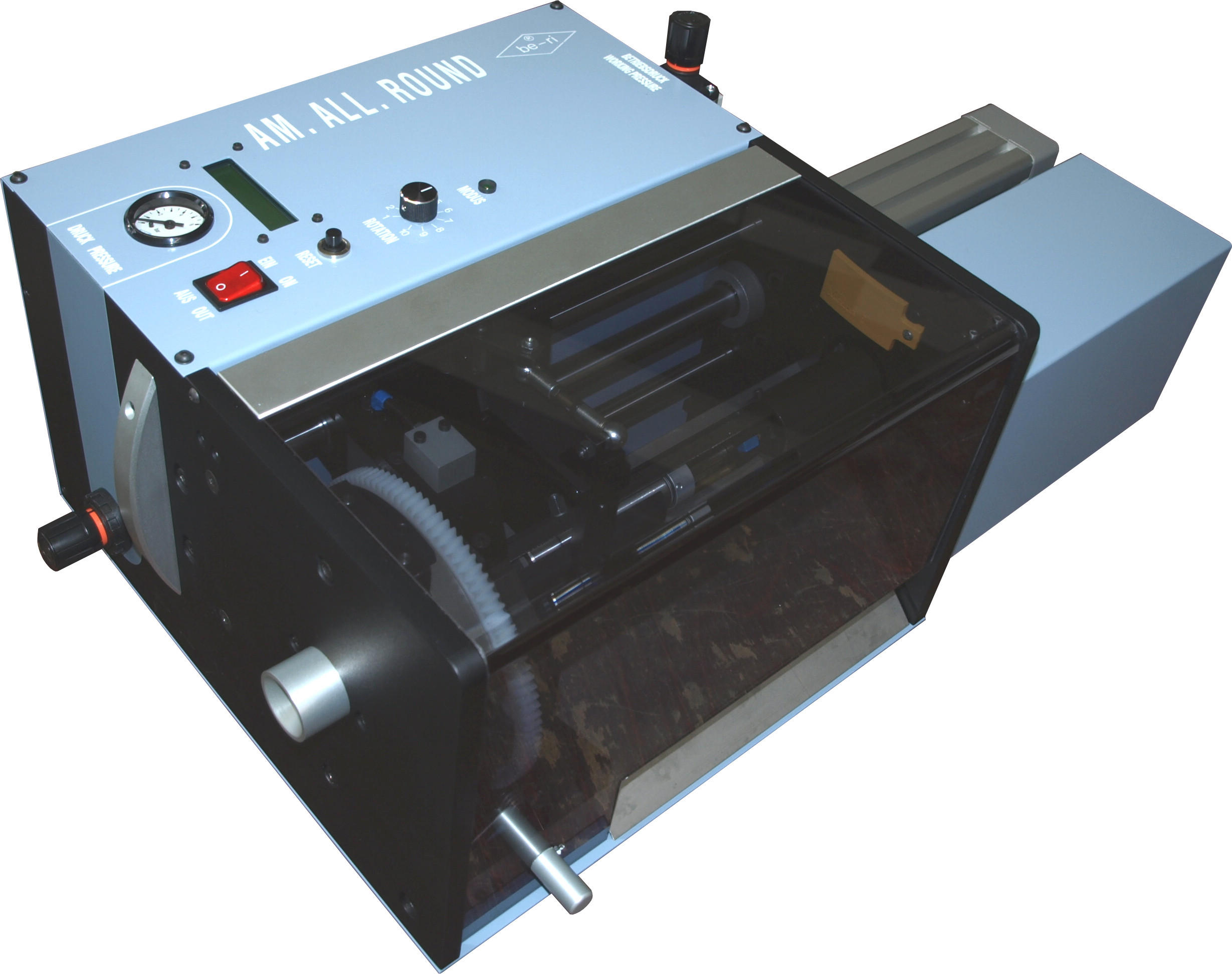

Rotational Stripping Machine AM.ALL.ROUND

With the semi-automatic stripping machine Am.All.Round by RITTMEYER one can easily, comfortably and safely undertake high precise stripping works on single strands and cables. Without any great difficulty one can strip extremely difficult insulations which up to now could have been treated insufficiently with conventional clamping and cutting methods or which could not have been treated at all.

Availability: Estimated delivery time 2-3 weeks

1

Additional Info

Additional Info

Country of Manufacture
Stripping machine Series Beri
Stripping machine Brands Feintechnik Rittmyer
Page Layout No layout updates

Mating Connectors

this product has no mating connectors products

Required Components

this product has no mating Required components products

Accessories

this product has no accessories products

Description

Details

Advantages and Special Features:
- rotating blade head
- no changing blades when using flat blades
- brief setup times
- cables (55 mm + stripping length) can be processed
- sensor triggering
- removal of waste through lateral ejection
- progressively adjustable cable diameters
- cable guiding in the guiding tube
- progressively adjustable clamping force
- rotating time by preliminary selection
- die blades and prismatic blades (special blades)
- LC-Display

Technical Design:
Stripping length (total removing) ca. 5 – 160 mm
Partial removal AM.ALL.ROUND/400 up to 400 mm
Optionally up to 1.000 mm *
Stripping diameter ca. 2 – 24 mm
Cycle time 2 – 5 sec.
Operating pressure 6 – 7 bar
