Catalogue item

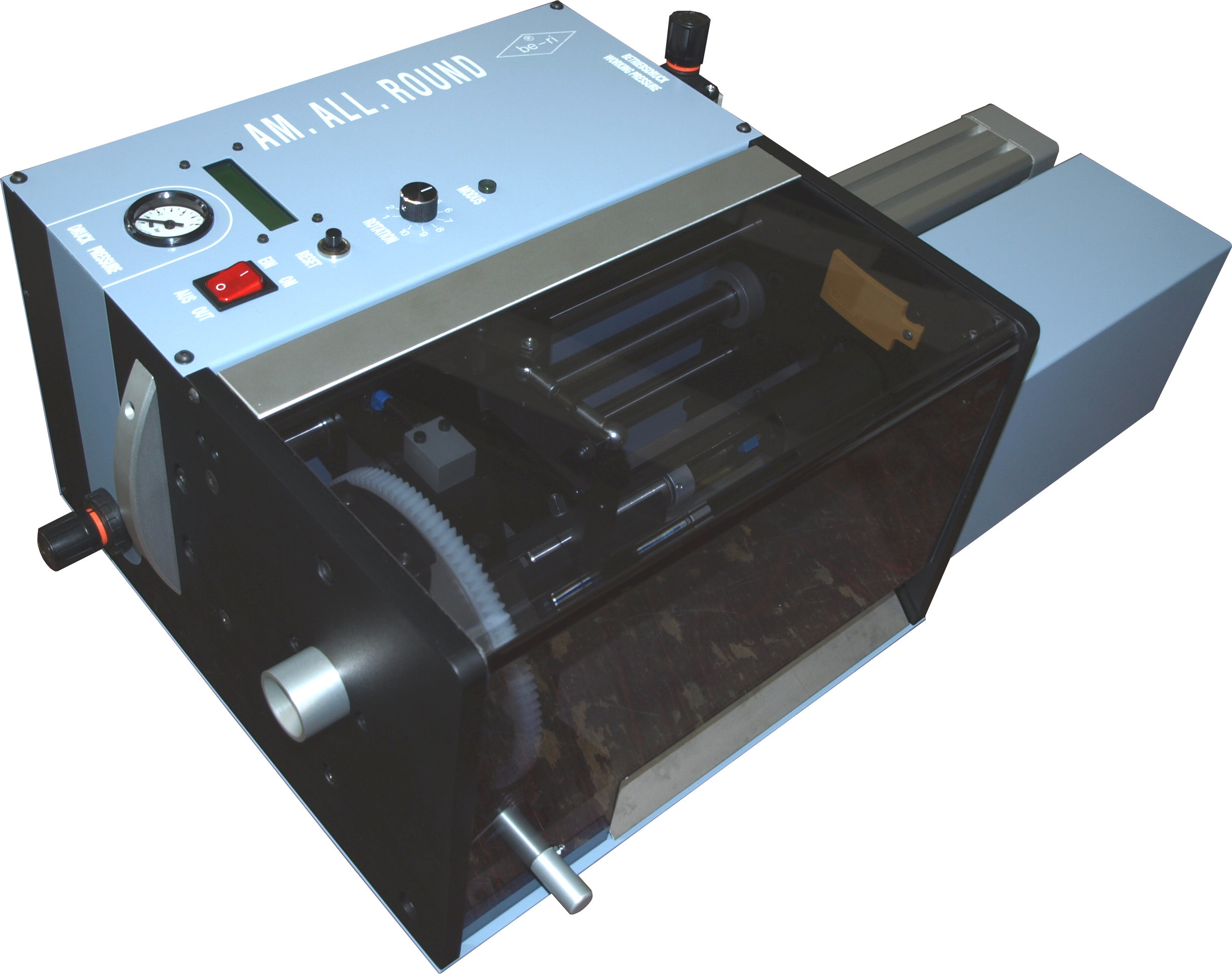

Rotational Stripping Machine AM.ALL.ROUND
AM.ALL.ROUND is a semi-automatic, electro-pneumatic rotating wire stripping machine for high-precision industrial cable processing. Its rotating blade head strips round cables from 2 to 24 mm outer diameter, with stripping lengths up to 160 mm, and up to 1000 mm in the 400 / 750 / 1000 variants.
Features
- Rotating blade head
- No blade change needed when using flat blades
- Brief setup times
- Sensor triggering
- Progressively adjustable cable diameter and clamping force
- Die blades and prismatic (special) blades
- Optional "Cutting-only" and "Automatic reset" modules
Specifications
- Outer diameter
- 2.0 to 24.0 mm (0.08 to 0.95 in)
- Stripping length (rotating blades)
- 5.0 to 160.0 mm (0.2 to 6.3 in)
- Partial stroke
- 5.0 to 160.0 mm (0.2 to 6.3 in)
- Drive
- Electro-pneumatic
- Blade head
- Rotating
- Variants
- AM.ALL.ROUND 400 / 750 / 1000 (up to 400 / 750 / 1000 mm)
