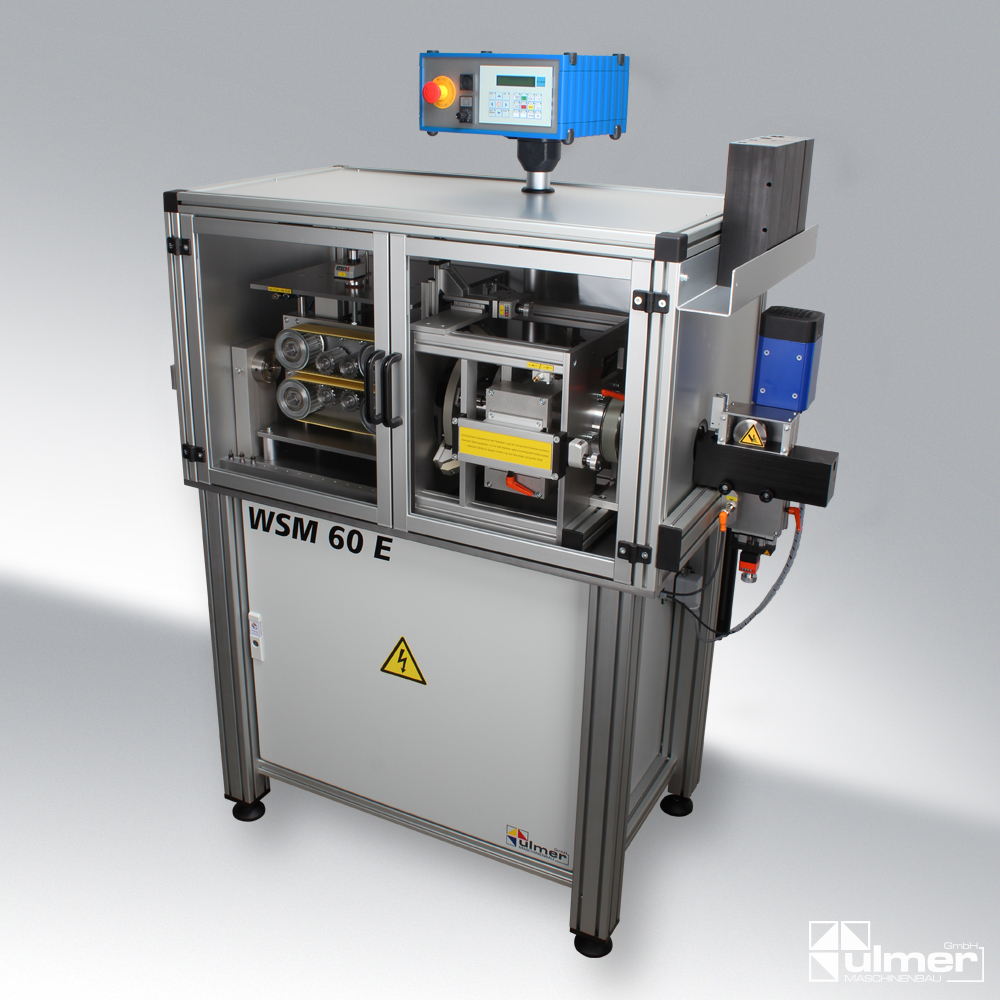

Ulmer Corrugated tube cutting machine WSM 60 E

The corrugated tube cutting machine WSM 60 E is suitable to cut non-slitted corrugated tubes of 7 to 60 mm outer diameter. The cut is carried out in rotation mode, where the cutting blades turn continuously round the product to cut the material at the precise position of the specified length.

Optionally, the WSM 60 E can be fitted with a slitting unit, which slits the corrugated tube longitudinally. This allows to build up stocks of non-slitted corrugated tubes which can be finally processed as slitted or non-slitted material.

Equipment: telescopic cutting head, laser light barrier for positioning, guide nozzles and cutting blade sets for the diameter of 3 corrugated tubes made to customer specification.

To process special forms with the WSM 60 E, supplementary accessories are available.

Technical Data
