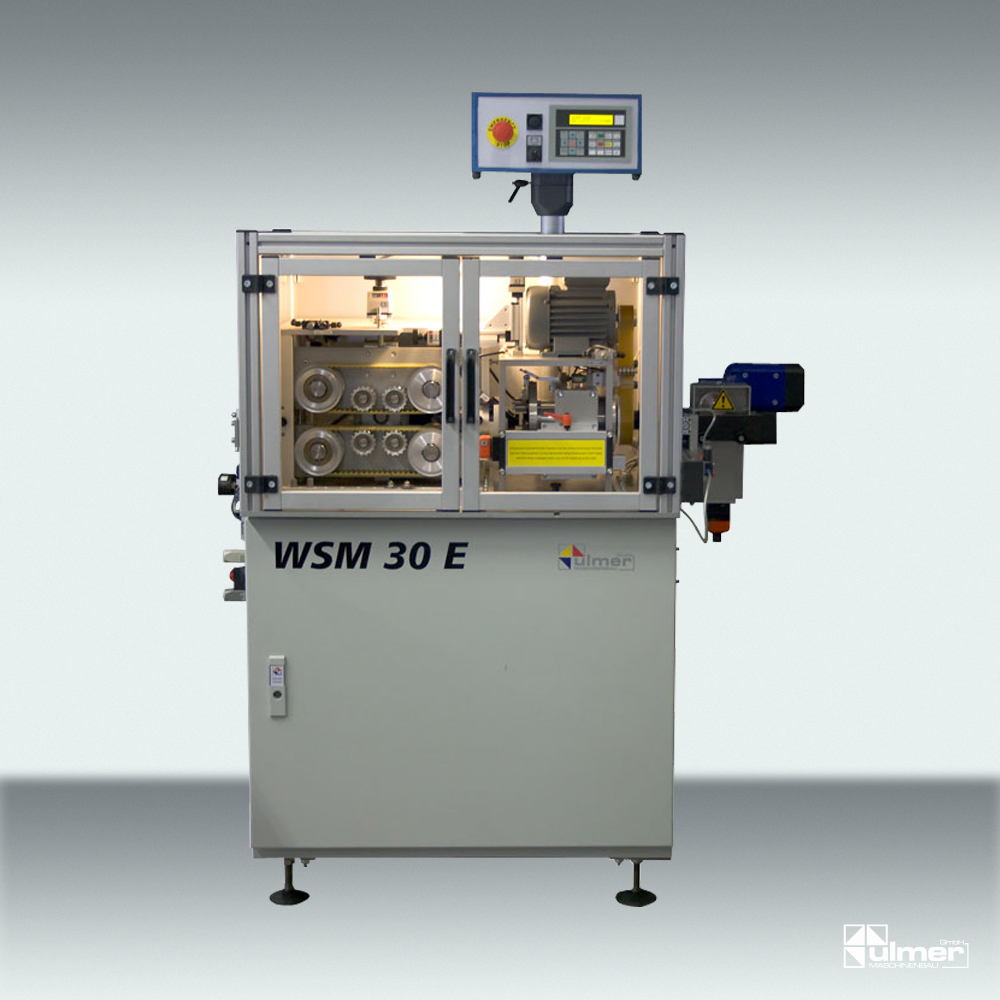

Ulmer Corrugated tube cutting machine WSM 30 E

The corrugated tube cutting machine WSM 30 E is suitable to cut non-slitted corrugated tubes of 7 to 32 mm outer diameter. The cut is carried out in rotation mode, where the cutting blades turn continuously round the product to cut the material at the precise position of the specified length.

Availability: Estimated delivery time 2-3 weeks

1

Additional Info

Additional Info

Country of Manufacture
Cutting machine Brands Ulmer
Page Layout No layout updates

Mating Connectors

this product has no mating connectors products

Required Components

this product has no mating Required components products

Accessories

this product has no accessories products

Description

Details

The corrugated tube cutting machine WSM 30 E is suitable to cut non-slitted corrugated tubes of 7 to 32 mm outer diameter. The cut is carried out in rotation mode, where the cutting blades turn continuously round the product to cut the material at the precise position of the specified length.

Optionally, the WSM 30 E can be fitted with a slitting unit, which slits the corrugated tube longitudinally. This allows to build up stocks of non-slitted corrugated tubes which can be finally processed as slitted or non-slitted material.

Equipment: telescopic cutting head, laser light barrier for positioning, guide nozzles and cutting blade sets for the diameter of 3 corrugated tubes made to customer specification.

To process special forms with the WSM 30 E, supplementary accessories are available.


Technical Data

  • Drive motor: Servo
  • Drive cutting head: Three-phase motor
  • Length: 900 mm
  • Depth: 500 mm
  • Height: 1800 mm
  • Control panel: Membrane keyboard
  • Display: Multilingual (selectable)
  • Operating hours and counter: Included
  • Stop at end of material: Included
  • Length input: 0.1 mm steps
  • Max. length input: 99.9999 m
  • Upper belt lift: Pneumatically
  • Throughput height / -width: 7 – 32 mm
  • Weight: 180 kg
  • Air supply: 4 bar / 58 psi
  • Power supply: 3 x 400 V / N / 50-60 Hz
