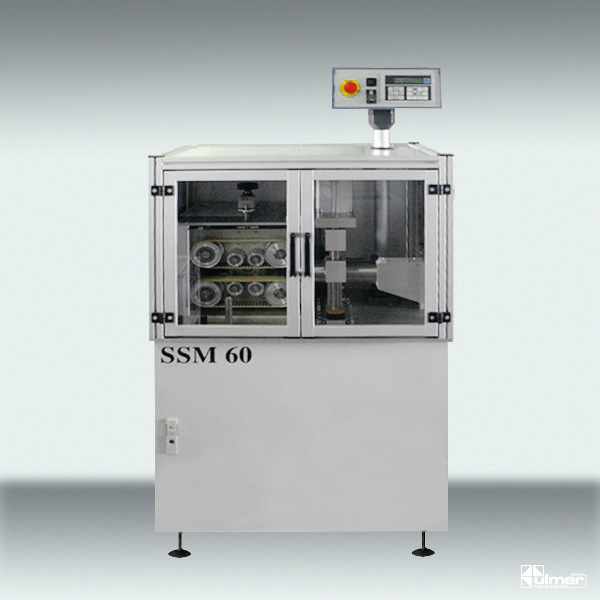

Ulmer Hose cutting machine SSM 60

The hose cutting machine SSM 60 is suitable to cut closed and slitted corrugated tube, PVC, rubber hose as well as further types of hoses with an outer diameter of up to 60 mm. Due to the applied guillotine-cut ( blade is fixed in a 45°-angle), a precise cutting angle as well as a high cutting quality is achieved.

Availability: Estimated delivery time 2-3 weeks

1

Additional Info

Additional Info

Country of Manufacture
Cutting machine Brands Ulmer
Page Layout No layout updates

Mating Connectors

this product has no mating connectors products

Required Components

this product has no mating Required components products

Accessories

this product has no accessories products

Description

Details

The hose cutting machine SSM 60 is suitable to cut closed and slitted corrugated tube, PVC, rubber hose as well as further types of hoses with an outer diameter of up to 60 mm. Due to the applied guillotine-cut ( blade is fixed in a 45°-angle), a precise cutting angle as well as a high cutting quality is achieved.

The machine is controlled by means of a compact control unit, which monitors all relevant machinery data.

Via the strong and powerful feeding process, the material is positioned and cut when the required length is reached.


Technical Data

  • Drive motor: Servo
  • Cutting head: Pneumatically operated
  • Length: 1000 mm
  • Depth: 700 mm
  • Height: 1800 mm
  • Control panel: Membrane keyboard
  • Display: Multilingual (selectable)
  • Operating hours and counter: Included
  • Stop at end of material: Included
  • Feeding rate: Up to 6000 mm / min
  • Length input: 0.1 mm steps
  • Max. length input: 999,999 mm
  • Upper belt lift: Pneumatically
  • Throughput height / -width: Up to 60 mm
  • Weight: 170 kg
  • Air supply: 6 bar / 87 psi
  • Power supply: 3 x 400 V / N / 50-60 Hz
