Catalogue item

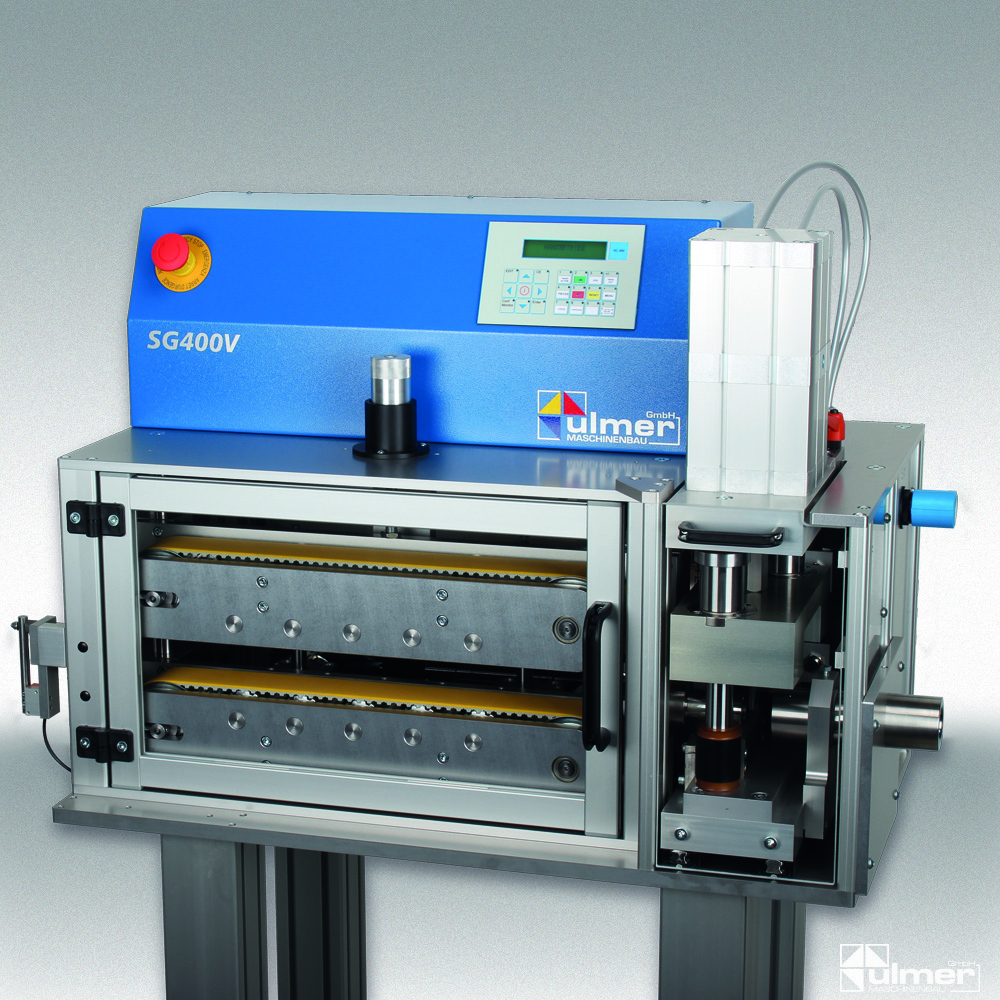

Ulmer Cutting machine SG400 V
The SG 400 V is a servo-driven cutting machine for large cables and cross-sections. It cuts dimensionally stable hoses up to 30 mm outer diameter and cables up to 200 mm² (Cu stranded), with a PLC control and optional PC cable-assembly software.
Features
- Developed for large cables and cross-sections
- Two-belt feed with product-specific belt coatings
- Powerful, efficient servo drive
- Mechanical feed-path limit for pressure-sensitive materials
- Extendable cutting head for quick knife and guide changes
- PLC control: length and quantity, product-specific parameters, printing units, error detection
- Optional PC with cable-assembly software and barcode input
Specifications
- Max hose outer diameter
- 30 mm
- Max cable cross-section
- 200 mm² (Cu stranded)
- Drive
- Servo
- Control
- PLC (optional PC software)
- Feed
- Two-belt
