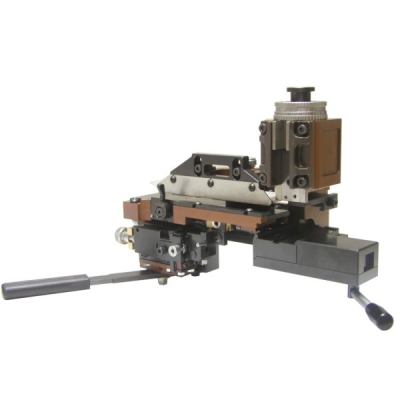

Mecal UNI

The UNI Applicator has definitely solved the issue of crimping different terminals in small batches, at the best quality with a very minimum investment.

Availability: Estimated delivery time 2-3 weeks

1

Additional Info

Additional Info

Country of Manufacture
Crimping equipment Brands Mecal
Page Layout No layout updates

Mating Connectors

this product has no mating connectors products

Required Components

this product has no mating Required components products

Accessories

this product has no accessories products

Description

Details

Technical Specifications
  • ID: UNI
  • Part Number: MUSB00-J
  • Description: Left side Uni miniapplicator
  • Press Stroke: 40/30mm (1,575/1,18")
  • Crimping Height: 153,8mm (6,055")
  • Terminal Pitch: Until to 40 mm (until to 1.57")
  • Terminal Thickness: Until to 1,2mm (until to 0,047"
  • Wire Section: Max 10mm²
  • Feed System: Manual
  • Weight: 9.0 Kg (19,84 lb))
  • Dimension mm: W320xH145,5xD140
  • Dimension ("): 12,6"x5,72"x5,51"


The UNI Applicator has definitely solved the issue of crimping different terminals in small batches, at the best quality with a very minimum investment.
The UNI Applicator can process all side feed terminals up to 10 mm² cross section just changing the crimpers and the anvils.
The main body can be easily adjusted to accommodate any difference in size, thickness, pitch and shape of the various terminals.
The set up time of the UNI Applicator stays in seconds. It fits to the Mecal standard Presses with a 153,8mm shut height; different arrangements are available upon request.
