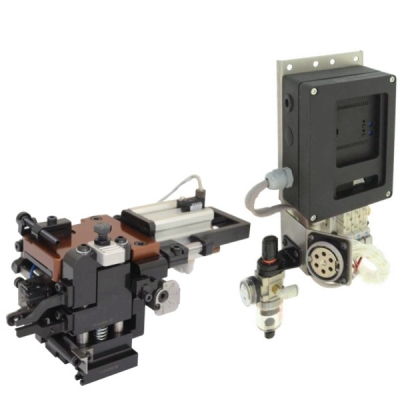

Mecal SC-19

Technical Specifications

• ID: SC19
• Air Pressure: 5 - 7 Bar
• Dimension mm: W260xH120xD120
• Dimension ("): W10,2"xH4,72"xD4,72"
• Weight: 4,5 kg (9,88 lb)
• Power Supply: 24 V DC
• Wire Section: 0,035 - 2,5mm² (32-13 AWG) insulation max 3,5mm
• Stripping Length: 2 - 12mm (0,078 - 0,473")
• Jacket Stripping Length: min 20mm (min 0,78")

The SC19 is a stripper unit in line with the crimping axis (without transfer by wire) driven by an electro-pneumatic system.
It can also be used with front-side feed mini applicators (for concatenated terminals wrapped on a reel) and side feed mini applicators (for terminals bundled by a band, wound on the reel with left to right winding).
The SC19 is able to strip wires up to 2.5mm² of section and the machine is driven automatically, by a sensor mounted on board, or with the pedal.
The necessary adjustments are simple and easy to access. The SC19 stripper unit cod. 790000030 can work exclusively in tandem with the pre-equipped Mecal press (SEE VERSIONS to have the code complete with adaptation kit).
* In the use of multipolar wires, the minimum length of stripping is 20mm. This length depends on how the terminal used is tied and the dimensions of the personalisation of the cutting blades of the mini applicator used.
