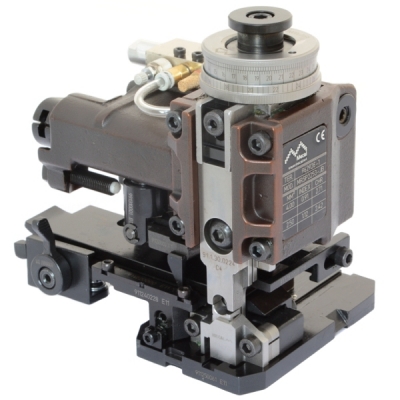

Mecal Restyling Pneumatic
Mini applicator for linked terminals, with thickness 27mm (if the pitch is lower than 27mm, a pneumatic feeding-system version can be supplied upon request), wire section between 0 and 10mm². Pneumatic « side-feed » feeding system for linked terminals on a reel to be unrolled left to right.
Specification
Technical Specifications
- ID: MRSP
- Crimping Height: 135,8mm(5,346")
- Stroke: 40/30mm (1,575/1,18")
- Terminal Pitch: > 27 mm (>1,06") Max. stroke 35mm
- Terminal Thickness: < 1,2mm (<0,047")
- Wire Section: max 10mm²
- Feeding System: air pressure 5/6 Bar
- Weight: 4,1Kg (9,02lb)
- Dimension mm: W140,5xH145,5xD105
- Dimension ("): W5,53"xH5,72"xD4,13"
- Option: Continuous regulating head / 0,01mm(0,00039") resolution / 2,7mm(0,106") range
Mini applicator for linked terminals, with thickness < 1.2mm., terminal pitch > 27mm (if the pitch is lower than 27mm, a pneumatic feeding-system version can be supplied upon request), wire section between 0 and 10mm².
Pneumatic « side-feed » feeding system for linked terminals on a reel to be unrolled left to right.
Can be supplied either with a continuous or a four-pad regulating head. It is supplied with a non-resettable 7-digit cycle counter.
Can be fitted to any crimping press having a crimping height (measured from the miniapplicator mounting plate to the press « T » coupling when at Bottom Dead Center) of 135.8mm ± 0.02mm, and can be used in both manual (for bench-top press) and automatic (for cut and strip machine) configuration.
It is supplied with a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment.
Upon request, a capability study (including a picture of a sectioned crimped terminal) can be performed.
Compared to the previous models, the Restyling family offers the following features
- The anvil can be replaced without removing the applicator from the press as the anvil is made in two parts – wire and insulation – it is possible to replace only the worn-out one
- The mini applicator base-plate is thicker, hence more rigid
- The mini applicator body allows the replacement of the crimpers without removing the ram from the applicator or the applicator from the press
- The pitch adjusting system as well as the centering of the terminal over the anvil are even more user friendly and clearly illustrated in the detailed technical documentation
