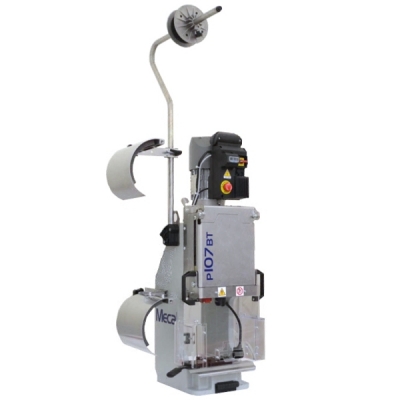

Mecal Press P107C

The P107C Crimping Press is available either in semi-automatic (for bench-top use BT) configuration or in full automatic (integrated into a cut and strip machine) configuration.

Availability: Estimated delivery time 2-3 weeks

1

Additional Info

Additional Info

Country of Manufacture
Crimping equipment Brands Mecal
Type of press Electromech
Page Layout No layout updates

Mating Connectors

this product has no mating connectors products

Required Components

this product has no mating Required components products

Accessories

this product has no accessories products

Description

Details

Technical Specifications
  • ID: P107C
  • Power: 0,55Kw (0,75HP) single phase. 0,75Kw (1HP) trhee phase
  • Force: 2000Kg (4450lb)
  • Stroke: 40mm (1,57")
  • Crimping height: 135,8mm (5,34")
  • Weight: 85Kg (189lb)
  • Dimension (mm): W280xH860xD310
  • Dimension ("): (11.0"x33,8"x12,2")
  • Configuration: Bench top / automatic
  • Power Supply: Different arrangements available
  • Surface Finishing: Grey painting


The P107C has a standard stroke of 40mm, and upon request a variable stroke version is available : in this configuration the stroke can be set between 20 and 40mm, in 5mm increments. Other different strokes are available upon request.
The standard crimping height (measured from the applicator base plate to the press T-coupling when at Bottom Dead Center) in 135.8mm ± 0.02mm, but different kits to adapt it to different-size applicators are available upon request.
Mecal’s own CFA Crimp Force Analyser can be fitted as an option. The semi-automatic configuration (for bench top use) always includes safety cover, reel arm, foot switch according to the international safety standard and CE regulation.
Produced under a quality Management System certified to ISO 9001 and 14001 (TÜV).
