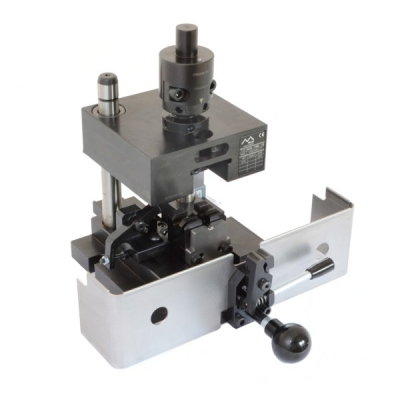

Mecal MSES
Two-post crimping die for big loose terminals with thickness above 1.5mm and wire section up to 75mm².
Specification
Technical Specifications
- ID: MSES
- Crimping Height: 212mm (8.34") )
- Stroke: 50/60 mm (1,968/2.362")
- Terminal Pitch: Loose
- Terminal Thickness: > 1,5mm
- Wire Section: Max 75mm²
- Feeding System: Manual
- Weight: 13.6Kg (29.9lb)
- Dimensions mm: W170xH210xD200
- Dimensions ("): W6.69xH8.26xD7.87"
Two-post crimping die for big loose terminals with thickness above 1.5mm and wire section up to 75mm². Continuous crimping height adjusting system.
The terminal is loaded by means of a manually operated slide, fitted with a sensor that allow the press to cycle only when the slide has reached its stroke’s end.
All the wearing parts can be replaced without removing the applicator from the press.
Can be fitted to any crimping press having a crimping height (measured from the die mounting plate to the press coupling when at Bottom Dead Center) of 212mm.
It is supplied with a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment.
Upon request, a capability study (including a picture of a sectioned crimped terminal) can be performed.
