Technical Specifications
- ID: MRSP COAXIAL
- Crimping Height: 135,8mm(5,346")
- Stroke: 40/30mm (1,575/1,18")
- Terminal Pitch: Max. stroke 35mm
- Terminal Thickness: < 1,2mm (<0,047")
- Wire Section: RG174, RTK031, RG58/59
- Feeding System: Air pressure 5/6 Bar
- Weight: 7Kg (15,7lb)
- Dimension mm: W280 x H145,5 x D270
- Dimension ("): W11,2" x H5,72" x D10,6"
- Option: Continuous regulating head / 0,01mm (0,00039") resolution / 2,7mm (0,106") range

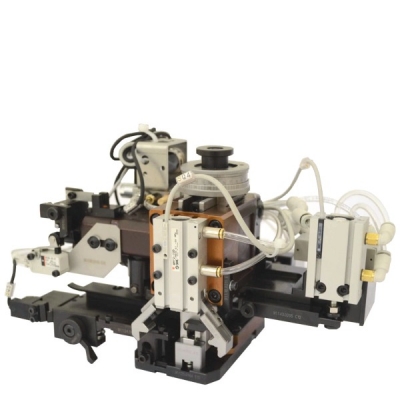

To effectively handle all coaxial cables - and specifically any FAKRA connector, Mecal has perfected a three-stage process - based on our COAXIAL MRSP applicator - which takes place on three different machines, with the aim of making the system flexible and interchangeable with reference to the different wire sections and terminal types.
- Press used: PSCM107 Cycle starting: By means of a dedicated sensor Operations performed: Wire zero-cutting, insulation stripping, crimping of the sleeve.
- Press used: PSCM107 Cycle starting: By means of a dedicate sensor Operations performed: Wire zero-cutting, spreading of the wire braid back, cutting of the aluminum shield, stripping of the dielectic, crimping of the central pin (straight male & female, 90°).
- Press used: P107C Cycle starting: By means of a dedicated sensor, granting also the presence and precise positioning of the INNER CONTACT within the OUTER one Operations performed: Crimping of the outer contact (straight male & female, 90°)
