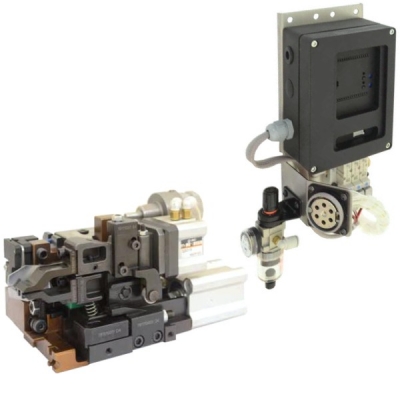

Mecal SC-12

Technical Specifications

• ID: SC12
• Air Pressure: 5 - 7 Bar
• Dimension mm: W212xH96xD98
• Dimension ("): W8,32"xH3,78"xD3,86"
• Weight: 5,1 kg (11,2 lb)
• Power Supply: 24 V DC
• Wire Section: 0,2-6mm² (32-9 AWG) Insulation Max 5,5mm

The SC12 Stripper-Crimper is a wire-stripping unit conceived to be integrated with a crimping station (press and applicator) and specifically designed to handle closed-barrel terminals. In one smooth movement, the SC12 grabs the wire, strips it and moves into the closed-barrel terminal over the anvil, where it will be crimped to the terminal. PLC controlled, the electro – pneumatic actuating system grants ease of installation, use and maintenance. It can strip wires up to 6mm², and can be either coupled to end-feed mini applicators (for end-to-end linked terminals on a reel) or side-feed mini applicators (for carrier-linked terminals on a reel to be unrolled-left-to- right).

It requires a specific adapting kit to be coupled to Mecal crimping presses. It can be cycled either by pedal or by a sensor that detects the presence of the wire to be stripped. Either way, the stripped wire will automatically be moved over to the applicator and crimped to the terminal. The SC12 can be used with multiple-core wires, with a minimum jacket stripping length of 35mm. A specific kit allows the SC12 to handle traditional open-barrel terminals as the SC11. The very good accessibility offered by the SC12 allows for a quick set-up time and easy maintenance. Produced under a quality Management System certified to ISO 9001 (TÜV).
