- ID: MSMP
- Crimping Height: 147,6mm (5.81")
- Stroke: 50mm (1.97")
- Terminal Pitch: Not binding
- Terminal Thickness: 1,2 to 1,5mm (0.047" to 0.059")
- Wire Section: Max 25mm²
- Feeding System: Air pipe Ø4mm, 5/6 Bar
- Weight: 17Kg (37.4lb)
- Dimensions mm: W510xH210xD190
- Dimensions ("): W20.1"xH8.3"xD7.5"
- Crimp Height Adjustment: 4 pads "H" head

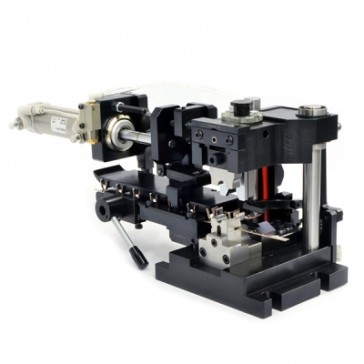

MSMP two post die is an absolute new entry into the Mecal produts range. It can crimp terminals in carrier strip, with left-to-right feeding, and it has some new features compared to the existing two post dies.
The upper plate is lighter and it's equipped with a 4-pads regulation head, which allows a precise control on the conductor crimping height, whereas the insulation crimping can be set up by a new system placed on the front side of the die.
This system is easily adjustable by a screw. The movement of the plate has been improved by means of two recirculating ball bushings.
The MSMP is also equipped with a non-resettable 7 digits piece counter. Suitable presses for the MSMP are the P040 or P080, with the crimp force analyzer CFA/CPM designed by Mecal.
