Catalogue item

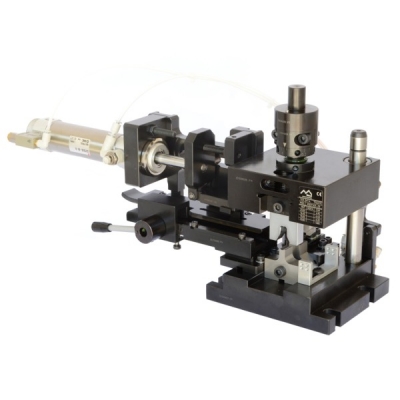

Mecal MSE
Two-post crimping die for big linked terminals rolled over a reel to be unrolled « left to right », with material thickness above 1.5 mm., wire section up to 75 mm².
Specification
Technical Specifications
- ID: MSEP S
- Crimping Height: 212mm (8.35")
- Stroke: 50mm (1.968")
- Terminal Pitch: Not binding
- Terminal Thickness: > 1,5mm (> 0,059")
- Wire Section: Max 75mm²
- Feeding System: Air pressure 5/6 Bar
- Weight: 17,0Kg (37,4lb)
- Dimensions mm: W450xH210xD157
- Dimensions ("): 17.7"x8.26"x5.9"
Two-post crimping die for big linked terminals rolled over a reel to be unrolled « left to right », with material thickness above 1.5 mm., wire section up to 75 mm². Terminal pitch not binding.Continuous crimping height adjusting system.
Pneumatic « side-feed » feeding system. All the wearing parts can be replaced without removing the applicator from the press.
Can be fitted to any crimping press having a crimping height (measured from the die mounting plate to the press coupling when at Bottom Dead Center) of 212mm.
It is supplied with a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment.
Upon request, a capability study (including a picture of a sectioned crimped terminal)) can be performed. Cycle counter non available.
