Country of Manufacture | |
---|---|
Crimping equipment Brands | Mecal |
Type of press | Electromech |
Page Layout | No layout updates |
Mating Connectors
Required Components
Accessories
Description
Details
Technical Specifications
- ID: IDC MRSP
- Crimping Height: 135,8mm(5,346")
- Stroke: 40/30mm (1,575/1,18")
- Terminal Pitch: 2.54 and 5mm step by step, multiple crimping depending on the configuration connectors and cables
- Wire Section: Max 10mm²
- Feeding System: Air pressure 5/6 Bar
- Weight: 4,1 (9,02)
- Dimension mm: W400xH145,5xD135
- Dimension ("): W15.7"xH5,72"xD5.31"
- Option: Continuous regulating head / 0,01mm(0,00039") resolution / 2,7mm(0,106") range

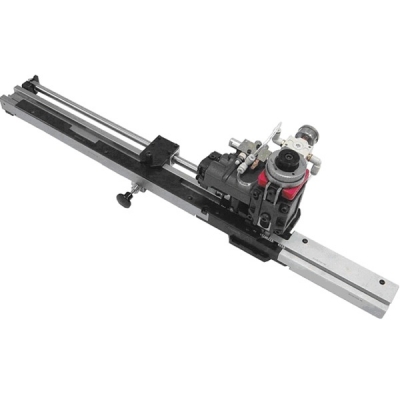

The MR IDC - IDC Applicator represents a quality low cost solution for crimping Insulation Displacement Connectors.
It fits to any standard Press with 135.8mm shut height (however different arrangements are available on request).
By means of a pneumatic loader, the connectors are gently fed into the crimping area. It can provide multiple crimping or single crimping (i.e. cavity by cavity), depending on the configuration design and cable structure.
