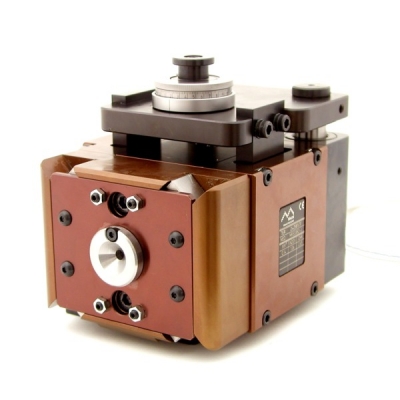

Mecal FMK

The FMK – Heavy Duty 4 Points Crimp Applicator is designed to crimp loose End Sleeve (Tube) Terminals.

Availability: Estimated delivery time 2-3 weeks


Additional Info

Additional Info

Country of Manufacture
Crimping equipment Brands Mecal
Page Layout No layout updates

Mating Connectors

this product has no mating connectors products

Required Components

this product has no mating Required components products


this product has no accessories products



Technical Specifications
  • ID: FMK
  • Crimping Height: 135,8mm (5,346")
  • Stroke: 40/30mm (1,575/1,18")
  • Terminal Pitch: Not / Whit binding
  • Terminal Thickness: Until to 2mm (until to 0,078")
  • Wire Section: Max 25mm²
  • Feeding System: Air pressure 5/6 Bar
  • Weight: 7,4 (16,3)
  • Dimensions mm: W163xH145,5xD200
  • Dimensions ("): W6,42"xH5,72"xD7,87"

The FMK – Heavy Duty 4 Points Crimp Applicator is designed to crimp loose End Sleeve (Tube) Terminals. On demand it can process End Sleeve Terminals on a reel.
The high quality level of parts manufacturing, combined with an accurate design and engineering, allows the Crimp Force Analyzer usage on the crimping Press.
As in any other Mecal applicator an inviolable 7 digit piece counter, as well as a micrometric crimping height adjusting is included.
To avoid faulty crimps, the FMK is equipped with a sensor to detect the correct terminal positioning. It can crimp up to a terminal thickness of 2mm and external diameter of 10mm.
Key Features
  • Depth sensor for proper placement of the contact.
  • Independent regulation crimping, front easy access.
  • Ability to process contacts with carrying strap from the reel from left to right and from right to left.
  • Ability to handle semi-automatic contacts loose.
  • Applicable to all versions of Mecal presses from model P107C.
  • Clamping on sideburns and attacks than traditional coupling, as per standard Mecal.
  • Quick and easy process for the replacement of crimping dies.
