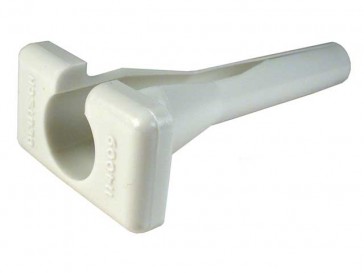

DeutschCatalogue item
114009
Generally high availability — ask for current lead time
Color
White
Contact Size
4
keyed
No
Material
Plastic
Series
DTHD Series, HD10 Series, HD30 Series, HDP20 Series, Jiffy Splice
Wire Size
6
Additional information
| Color | White |
| Contact Size | 4 |
| keyed | No |
| Material | Plastic |
| Series | DTHD Series, HD10 Series, HD30 Series, HDP20 Series, Jiffy Splice |
| Wire Size | 6 |
Drawings
Customer View Model (PDF)3D_CVM_CVM_114009-ZZ_99_c-114009-zz-99-3d.pdfProduct Drawing (PDF)ENG_CD_114008X114010_D.pdfProduct Drawing (TIF)ENG_CD_114008X114010_D.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_114009-ZZ_99_c-114009-zz-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_114009-ZZ_99_c-114009-zz-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_114009-ZZ_99_c-114009-zz-99.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
