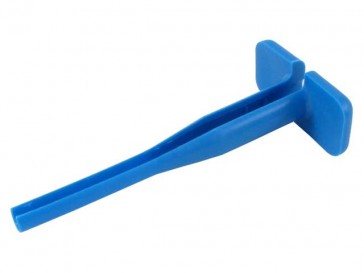

DeutschCatalogue item

0411-336-1605

Generally high availability — ask for current lead time
Color
Dark Blue
Contact Size
16
keyed
No
Material
Plastic
Seal Size
E-seal
Series
HD30 Series, HDP20 Series, HD10 Series, DRC Series, AEC Series
Request a quoteCall usEmail

Additional information

ColorDark Blue
Contact Size16
keyedNo
MaterialPlastic
Seal SizeE-seal
SeriesHD30 Series, HDP20 Series, HD10 Series, DRC Series, AEC Series
Wire Size16, 18

Drawings

Customer View Model (PDF)3D_CVM_CVM_0411-336-1605_99_c-0411-336-1605-99-3d.pdfProduct Drawing (PDF)ENG_CD_0411-336-1605_-.pdfProduct Drawing (TIF)ENG_CD_0411-336-1605_-.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_0411-336-1605_99_c-0411-336-1605-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_0411-336-1605_99_c-0411-336-1605-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_0411-336-1605_99_c-0411-336-1605-99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
