Additional Info
Additional Info
| Material | brass |
|---|---|
| Plating | clean |
| RoHS Conform | Y |
| A | 2.5 |
| B | 0.8 |
| B1 | 5.2 |

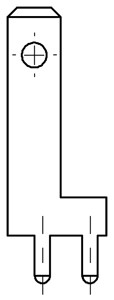

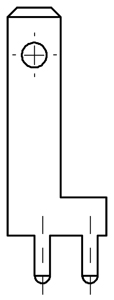

| CAD Zeichnung | 3785y05.STEP |
| D | 1.3 |
| für Bohrung | 0.9 |
| L | 10 |
| S | 0.5 |
-
