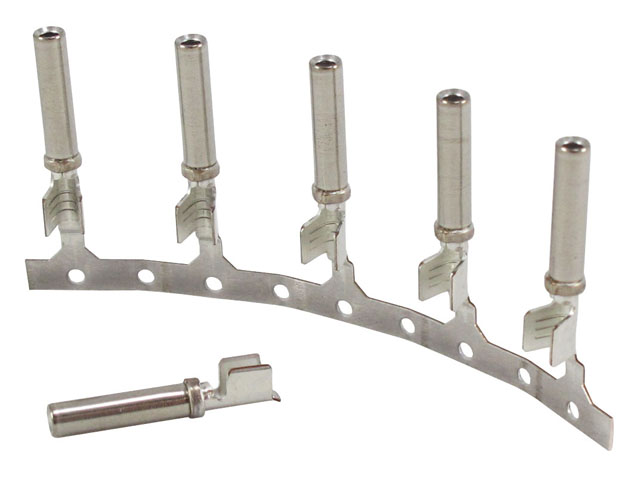

776491-2
Deutsch, TE ConnectivityCatalogue item

776491-2

Generally high availability — ask for current lead time
Connector Style
Receptacle Contact Housing
Current Rating
Up to 13
Insulation
.077-.155 [1.95-3.93]
Material
Select Tin
Series
AMPSEAL 16 Series
Solid/Stamped & Formed
Stamped & Formed
Request a quoteCall usEmail

Additional information

Connector StyleReceptacle Contact Housing
Current RatingUp to 13
Insulation.077-.155 [1.95-3.93]
MaterialSelect Tin
SeriesAMPSEAL 16 Series
Solid/Stamped & FormedStamped & Formed
Special FeaturesReel - 5,000
Wire Size14, 16, 18

Drawings

Customer View Model (PDF)ENG_CVM_776491-2_B.pdfProduct Drawing (PDF)ENG_CD_776491_B1.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_776491-2_B.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_776491-2_B.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_776491-2_B.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
