Deutsch, TE ConnectivityCatalogue item

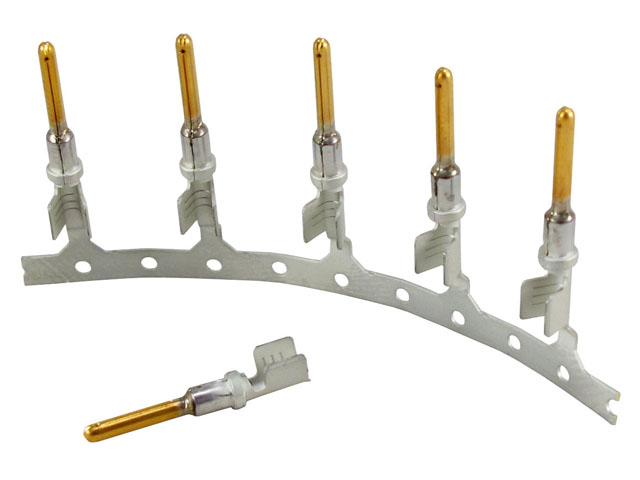

638112-1
Generally high availability — ask for current lead time
Connector Style
Pin Contact Housing
Current Rating
Up to 13
Insulation
.086-.144 [2.18-3.67]
keyed
No
Material
Gold
Series
AMPSEAL 16 Series
Additional information
| Connector Style | Pin Contact Housing |
| Current Rating | Up to 13 |
| Insulation | .086-.144 [2.18-3.67] |
| keyed | No |
| Material | Gold |
| Series | AMPSEAL 16 Series |
| Solid/Stamped & Formed | Stamped & Formed |
| Special Features | Without wire insulation support |
| Wire Size | 14, 16, 18 |
Drawings
Customer View Model (PDF)3D_CVM_CVM_638112-1_M.pdfProduct Drawing (PDF)ENG_CD_638112_C2.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_638112-1_M.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_638112-1_M.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_638112-1_M.3d_stp.zip
