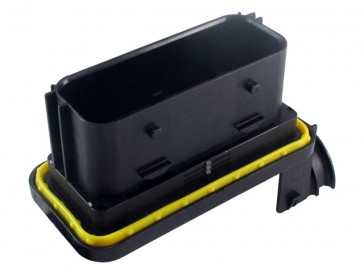

2138846-1
DTDeutsch

2138846-1

DT Series

Generally high availability — ask for current lead time
Series
DT Series
Wire size
10, 12, 14, 16, 18, 20
Color
Black
Request a quoteCall usEmail

Technical specifications

ColorBlack
Connector StylePin Contact Housing
Flange/In-line/PCB MountFlange
Holds Pin/Receptacle ContactPin
Insulation(#12).111-.161 [2.82-4.09], (#16).066-.109 [1.68-2.77]
keyedYes
MaterialPlastic
SeriesAMPSEAL 16 Series
ShapeRectangular
Wire Size10, 12, 14, 16, 18, 20

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-204-12141
0460-204-12141
0460-220-1231
0460-220-1231

Mating connectors

2138839-1
2138839-1

Accessories

2138852-1
2138852-1
2138852-2
2138852-3
2138853-1
2138853-1

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
