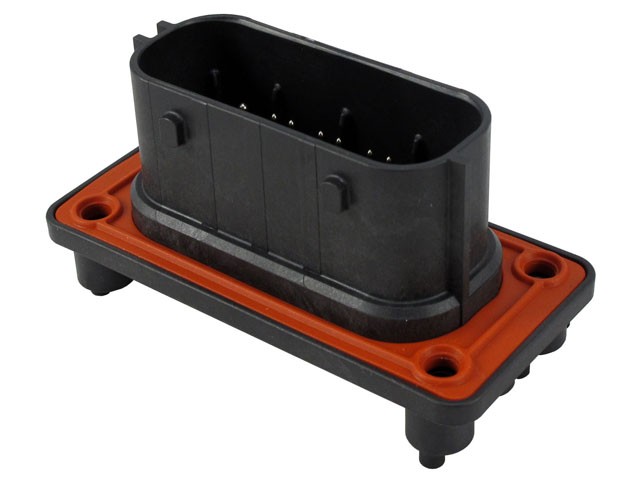

SRK15-MDA-32A-001
SRKDeutsch

SRK15-MDA-32A-001

SRK Series

Generally high availability — ask for current lead time
Cavities
32
Wire size (AWG)
16, 20
Color
Black
Request a quoteCall usEmail

Technical specifications

SeriesSTRIKE Series
BrandDeutsch
No. of cavities32
Part NumberSRK15-MDA-32A-001
Flange/In-line/PCB MountPCB
keyedYes, A key
ShapeRectangular
MaterialPlastic
Connector StyleReceptacle
Holds Pin/SocketPin
Special FeaturesStraight, molded pins
Wire Size16, 20
Shell SizeMed. Shell
ColorBlack

Mating connectors

SRK06-MDA-32A-001
SRK06-MDA-32A-001

Drawings & CAD files

pdfCustomer View Model (PDF)
1.10 MB
pdfProduct Drawing (PDF)
761.17 KB
dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
147.24 KB
igesCAD Files 3D Model (IGES Version 99 ZIP)
1.31 MB
stepCAD Files 3D Model (STEP Version 99 ZIP)
483.94 KB

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
