HDP24-24-16SN-L017
HDPDeutsch

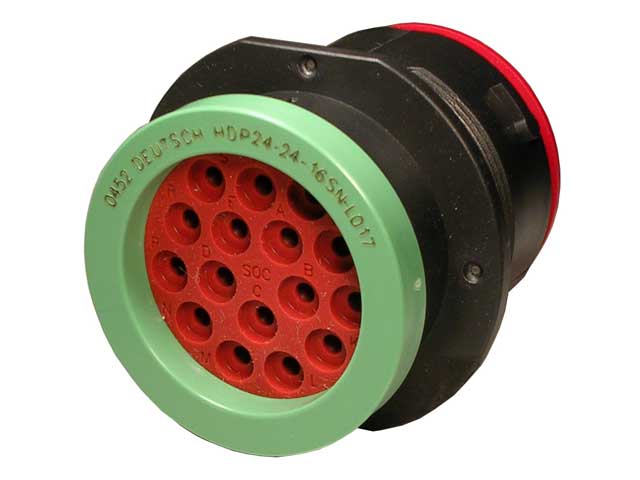

HDP24-24-16SN-L017

HDP Heavy Power Series · Size 12 contacts

Generally high availability — ask for current lead time
Cavities
16
Contact size
12
Series
HDP Heavy Power Series
Current rating
25
Wire size
10, 12, 14
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities16
ColorBlack
Connector StyleReceptacle
Contact Size12
Current Rating25
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketSocket
Insulation.134-.170 [3.40-4.32]
keyedNo
MaterialPlastic
ModificationRing Adapter
Seal SizeN seal
SeriesHDP20 Series
ShapeCircular
Shell Size24 shell
Special FeaturesReverse
Wire Size10, 12, 14

Compatible contacts

0462-203-12141
0462-203-12141
0462-210-1231
0462-210-1231
1062-12-0144
1062-12-0144
1062-12-0166
1062-12-0166

Mating connectors

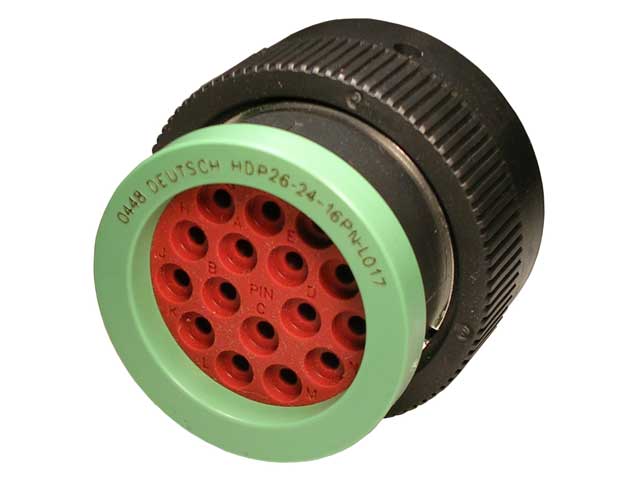

HDP26-24-16PN-L017
HDP26-24-16PN-L017

Accessories

2411-001-2405
2411-001-2405
2414-001-2486
2414-001-2486
2428-008-2405
2428-008-2405
2428-011-2405
2428-011-2405

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)
