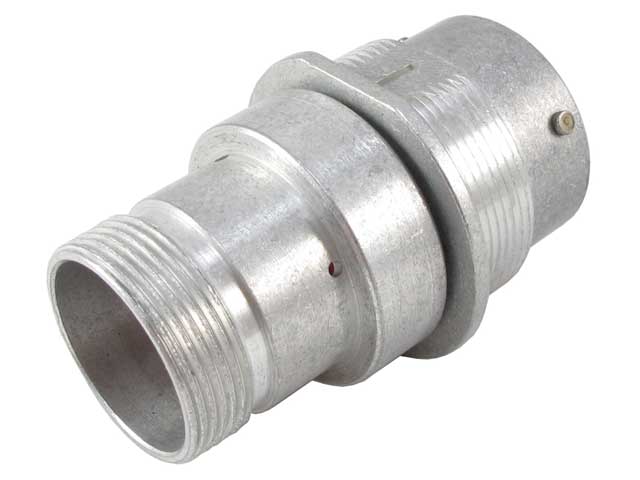

HD36-24-14PN-072
HDDeutsch

HD36-24-14PN-072

HD

Generally high availability — ask for current lead time
Cavities
14
Series
HD
Wire size
6, 10, 12, 14, 16, 18, 20
Color
Silver
Request a quoteCall usEmail

Technical specifications

No. of cavities14
ColorSilver
Connector StylePlug
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation(#4).280-.292 [7.11-7.42], (#12).134-.170 [3.40-4.32], (#16).100-.134 [2.54-3.40]
keyedNo
MaterialAluminum
ModificationAdapter
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Special FeaturesReverse
Wire Size6, 10, 12, 14, 16, 18, 20

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-204-0490
0460-204-0490
0460-204-12141
0460-204-12141

Mating connectors

HD34-24-14SN
HD34-24-14SN
HD34-24-14SN-059
HD34-24-14SN-059
HD34-24-14SN-072
HD34-24-14SN-072

Accessories

HDC34-24
HDC34-24

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
