DT04-08PA-LE11
DT8-wayPlugDeutsch

DT04-08PA-LE11

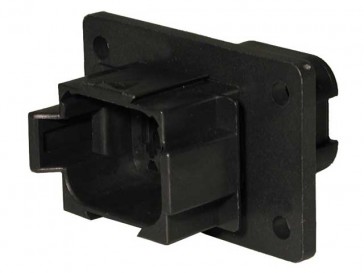

DT Series · 8-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
8
Contact size
16
Current rating
13
Wire size (AWG)
14, 16, 18, 20
Color
Black
Required wedgelock
W8P
Request a quoteCall usEmail

Technical specifications

SeriesDT Series
BrandDeutsch
No. of cavities8
Part NumberDT04-08PA-LE11
Flange/In-line/PCB MountFlange
keyedYes, A key
ModificationWelded Flange, End Cap
Current Rating13
Contact Size16
ShapeRectangular
MaterialPlastic
Connector StyleReceptacle
Holds Pin/SocketPin
Insulation.088-.145 [2.24-3.68]
Wire Size14, 16, 18, 20
Required WedgelockW8P
ColorBlack

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

DT06-08SA-E005
DT06-08SA-E005
DT06-08SA-EP08
DT06-08SA-EP08

Required components

Must be ordered together with the housing.

W8P
W8P

Accessories

DT-RT1
DT-RT1
DT8P-L012-GKT
DT8P-L012-GKT

Drawings & CAD files

dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
41.12 KB
igesCAD Files 3D Model (IGES Version 99 ZIP)
398.54 KB
stepCAD Files 3D Model (STEP Version 99 ZIP)
181.01 KB
pdfCustomer View Model (PDF)
409.54 KB
pdfProduct Drawing (PDF)
84.89 KB
tifProduct Drawing (TIF)
83.98 KB

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
