DeutschCatalogue item

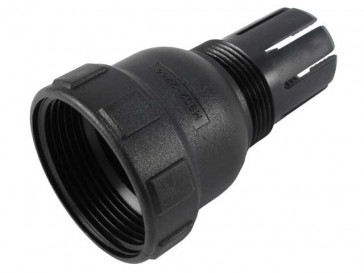

M902-2244
Generally high availability — ask for current lead time
Color
Black
Connector Style
Plug, Receptacle
Insulation
.570-.710 [14.48-18.03]
keyed
No
Material
Plastic
Series
HDP20 Series
Additional information
| Color | Black |
| Connector Style | Plug, Receptacle |
| Insulation | .570-.710 [14.48-18.03] |
| keyed | No |
| Material | Plastic |
| Series | HDP20 Series |
| Shell Size | 24 shell |
| Special Features | Used with L015 |
Drawings
Customer View Model (PDF)3D_CVM_CVM_M902-2244_99_c-m902-2244-99-3d.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_M902-2244_99_c-m902-2244-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_M902-2244_99_c-m902-2244-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_M902-2244_99_c-m902-2244-99.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
