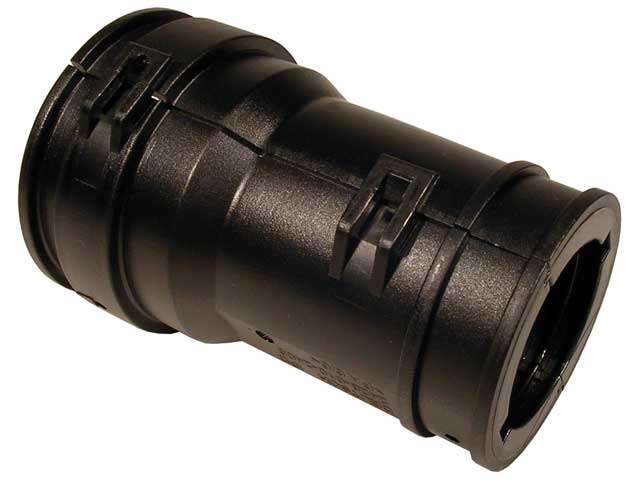

2428-010-2405
DeutschCatalogue item

2428-010-2405

Generally high availability — ask for current lead time
Color
Black
Connector Style
Plug, Receptacle
keyed
No
Material
Plastic
Series
HDP20 Series
Shell Size
24 shell
Request a quoteCall usEmail

Additional information

ColorBlack
Connector StylePlug, Receptacle
keyedNo
MaterialPlastic
SeriesHDP20 Series
Shell Size24 shell
Special FeaturesStraight, used with L017

Drawings

Customer View Model (PDF)3D_CVM_CVM_2428-010-2405_99_c-2428-010-2405-99-3d.pdfProduct Drawing (PDF)ENG_CD_2428-010-2405_A.pdfProduct Drawing (TIF)ENG_CD_2428-010-2405_A.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_2428-010-2405_99_c-2428-010-2405-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_2428-010-2405_99_c-2428-010-2405-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_2428-010-2405_99_c-2428-010-2405-99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
