DeutschCatalogue item

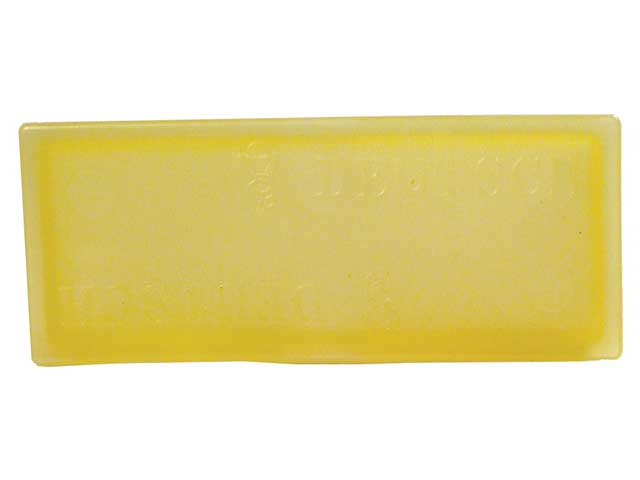

0515-002-4005
Generally high availability — ask for current lead time
No. of cavities
40
Color
Yellow
Connector Style
Receptacle
keyed
No
Material
Plastic
Series
DRC Series
Additional information
| No. of cavities | 40 |
| Color | Yellow |
| Connector Style | Receptacle |
| keyed | No |
| Material | Plastic |
| Series | DRC Series |
| Special Features | Non-env. sealed |
Drawings
Customer View Model (PDF)3D_CVM_CVM_0515-002-4005_99_c-0515-002-4005-99-3d.pdfProduct Drawing (PDF)ENG_CD_0515-002-4005_A.pdfProduct Drawing (TIF)ENG_CD_0515-002-4005_A.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_0515-002-4005_99_c-0515-002-4005-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_0515-002-4005_99_c-0515-002-4005-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_0515-002-4005_99_c-0515-002-4005-99.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
