DeutschCatalogue item
0413-217-1605
Generally high availability — ask for current lead time
Color
White
keyed
No
Material
Plastic
Series
HD30 Series, HDP20 Series, DRC Series, HD10 Series, DT Series, DRB Series, AEC Series, STRIKE Series
Special Features

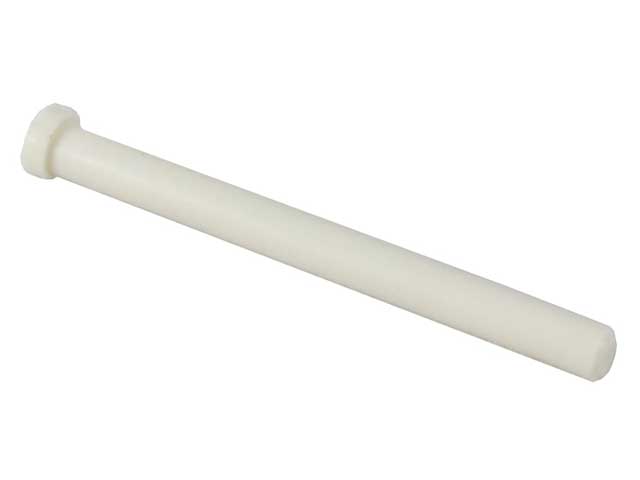

Locking sz. 16 sealing plug. Shoulder of sealing plug locks under contact retention finger in connector.
Additional information
| Color | White |
| keyed | No |
| Material | Plastic |
| Series | HD30 Series, HDP20 Series, DRC Series, HD10 Series, DT Series, DRB Series, AEC Series, STRIKE Series |
| Special Features | Locking sz. 16 sealing plug. Shoulder of sealing plug locks under contact retention finger in connector. |
Drawings
Customer View Model (PDF)3D_CVM_CVM_0413-217-1605_99_c-0413-217-1605-99-3d.pdfProduct Drawing (PDF)ENG_CD_0413-217-1605_D.pdfProduct Drawing (TIF)ENG_CD_0413-217-1605_D.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_0413-217-1605_99_c-0413-217-1605-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_0413-217-1605_99_c-0413-217-1605-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_0413-217-1605_99_c-0413-217-1605-99.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
