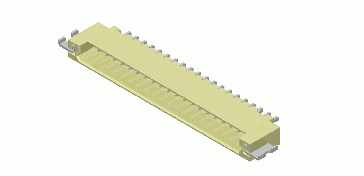

CID5 Series 1.25mm(.049")Wire to Board Connectors SMT Headers
• Rated Current and Voltage : 1.0A 150V AC(r.m.s) • Dielectric Withstanding Voltage : 500V AC for one minute • Contact Resistance : ＜30mΩ • Insulation Resistance : ＞500MΩ • Operating Temperature : -35℃ ~ +85℃ • Storage Temperature Range: -10℃ ~ +60℃
Generally high availability — ask for current lead time
Circuits
CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_312.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CID501S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Location
HBC-HVL0094
Additional information
| Circuits | CIRCUTS |
| Product Drawings | Download CID501S |
| GWIT | 0 |
| Halogen Free | 0 |
| Lead Free | 0 |
| Location | HBC-HVL0094 |
| Plating Code | 1= Tin Over Nickel Plated 2= Gold Flash Plated over 50μ” Nickel Download GENERAL%20PLATING-2 PDF |
| RoHS | 0 |
| Test Report | Download CID5可靠度測試報告 |
| Tin-lead | 0 |
| TUV | 0 |
| UL | 0 |
Description
N/A
