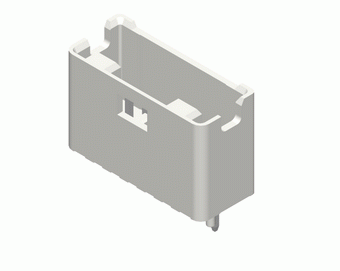

CI09 Series 2.0mm(.079")Wire to Board Connectors DIP Header
Catalogue item

CI09 Series 2.0mm(.079")Wire to Board Connectors DIP Header

• Rated current and voltage : 3A 100V AC(r.m.s) • Dielectric Withstanding Voltage : 800 V AC for one minute • Contact Resistance : ＜10mΩ • Insulation Resistance : ＞1000MΩ • Operating Temperature : -25℃ ~ 85℃ • RoHS Compliant

Generally high availability — ask for current lead time
Catalog-page
<a href='/media/cvilux/cdi_pdf_1303.pdf' style='color: rgb(255,0,0)' target='_blank'>Download P106 CI09-2</a>
Circuits
2~10 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_234.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CI0901S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Request a quoteCall usEmail

Additional information

Catalog-pageDownload P106 CI09-2
Circuits2~10 CIRCUTS
Product DrawingsDownload CI0901S
GWIT0
Halogen Free0
Lead Free0
LocationHBC
Plating Code1= Matte Tin Over Nickel Plated Download GENERAL PLATING-2 PDF
RoHS0
SpecificationDownload SPCI132
Tin-lead0
TUV0
UL0

Description

N/A
